详细说明
产品特色

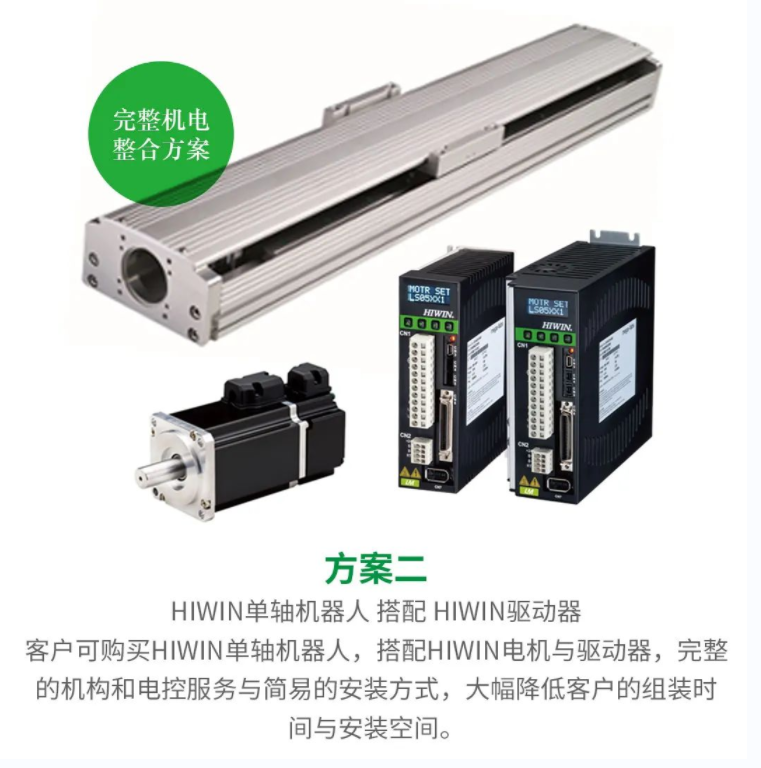

●驱动系统:可搭配伺服电机或步进电机驱动
●运动精度:最高可达士0.01mm
●速度:根据需求，最高可达1000mm/s (导程:20mm，转速:3000RPM)
●防护:铝护盖设计可防止异物进入，避免异物卷入造成故障或发生危险
●节省安装空间 ，总长缩短17.2% [注1]
●负荷能力提升31.6% (注2]
●安装便利性佳，底座同步对应螺纹孔、贯穿孔
●缩短行程位置起点，增加空间利用率
*注1 :比较基础为KAA-TYPE，各规格总长最大差异17.2%
*注2 :比较基础为KA136 A-TYPE，线轨正向力承载性能提升31.6%

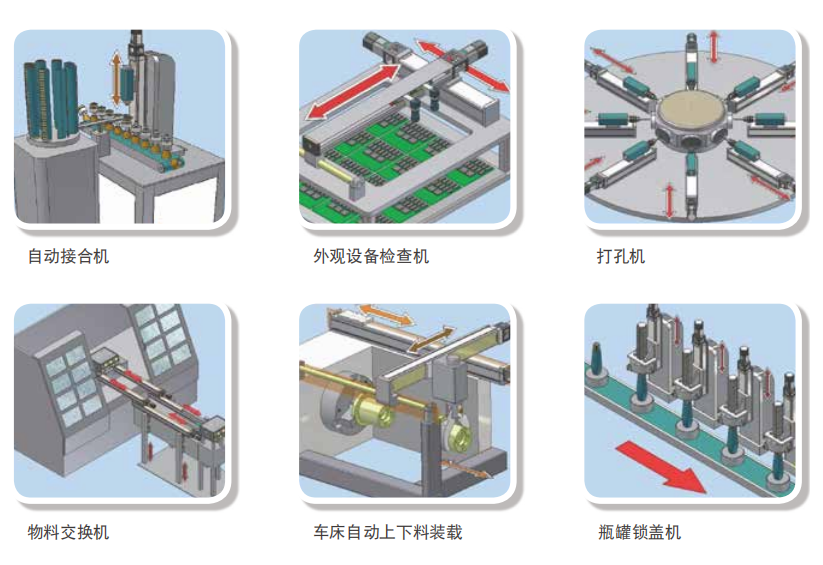

适用领域/
适用在所有自动化产业应用领域，半导体、液晶面板、家电、医疗、汽车、包装、点胶机、焊接、切割、
检测等。
产品特色 /
●驱动系统:可搭配伺服电机或步进电机驱动
●运动精度:最高可达士0.01mm
●速度:根据需求，最高可达1000mm/s (导程:20mm，转速:3000RPM)
●防护:铝护盖设计可防止异物进入，避免异物卷入造成故障或发生危险
●节省安装空间 ，总长缩短17.2% [注1]
●负荷能力提升31.6% (注2]
●安装便利性佳，底座同步对应螺纹孔、贯穿孔
●缩短行程位置起点，增加空间利用率
*注1 :比较基础为KAA-TYPE，各规格总长最大差异17.2%
*注2 :比较基础为KA136 A-TYPE，线轨正向力承载性能提升31.6%
适用领域 /
适用在所有自动化产业应用领域，半导体、液晶面板、家电、医疗、汽车、包装、点胶机、焊接、切割、检测等。
应用范例/

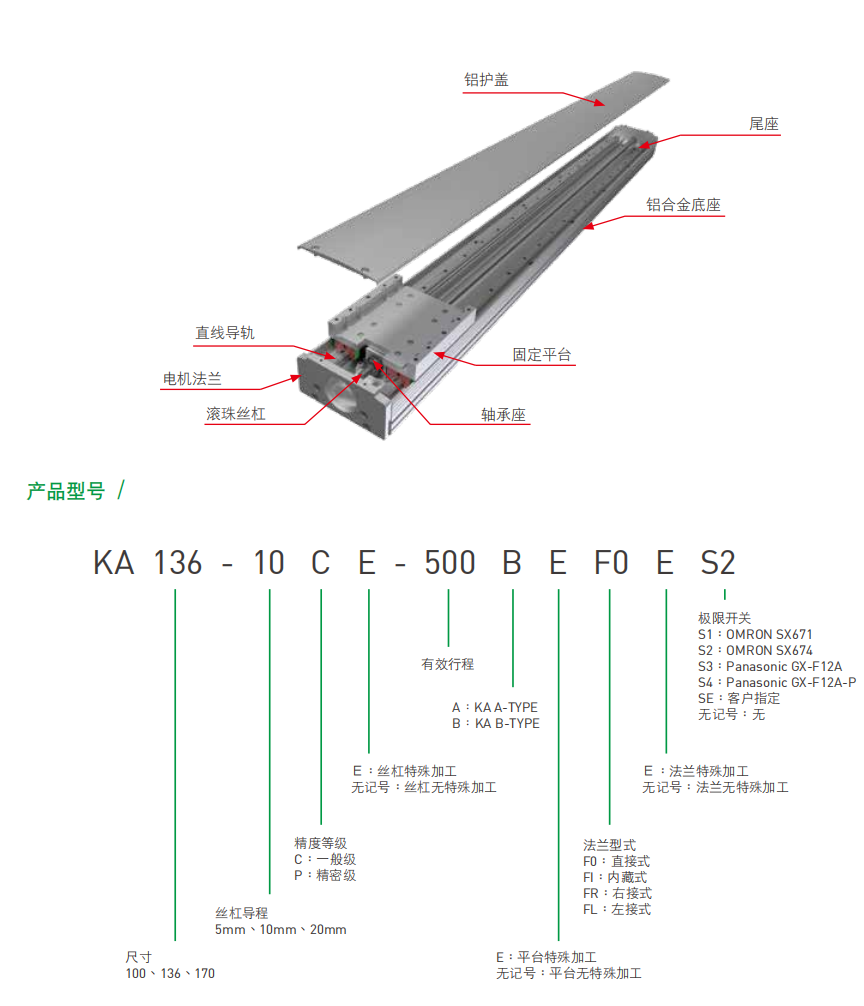

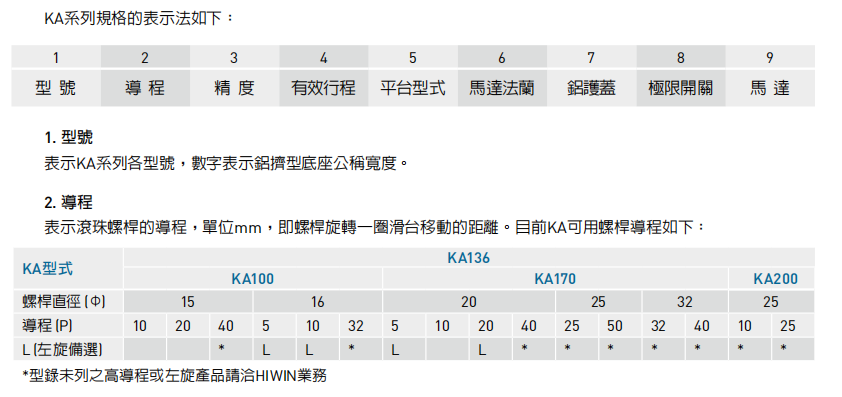

3. 精度
表示K A往返位置重现性的精度。滚珠螺杆型式的重现精度为C：标准级＝±0.02mm，P：精密级＝±0.01mm。
时规皮带型式重现精度为C：标准级＝±0.1mm。
往返位置重现性表示KA滑台往返移动过程中，到达某一定点位置的误差，取全行程中误差的最大值。
注意：KA产品并未标示绝对定位精度。
4. 有效行程
表示KA滑台的移动范围，单位mm。

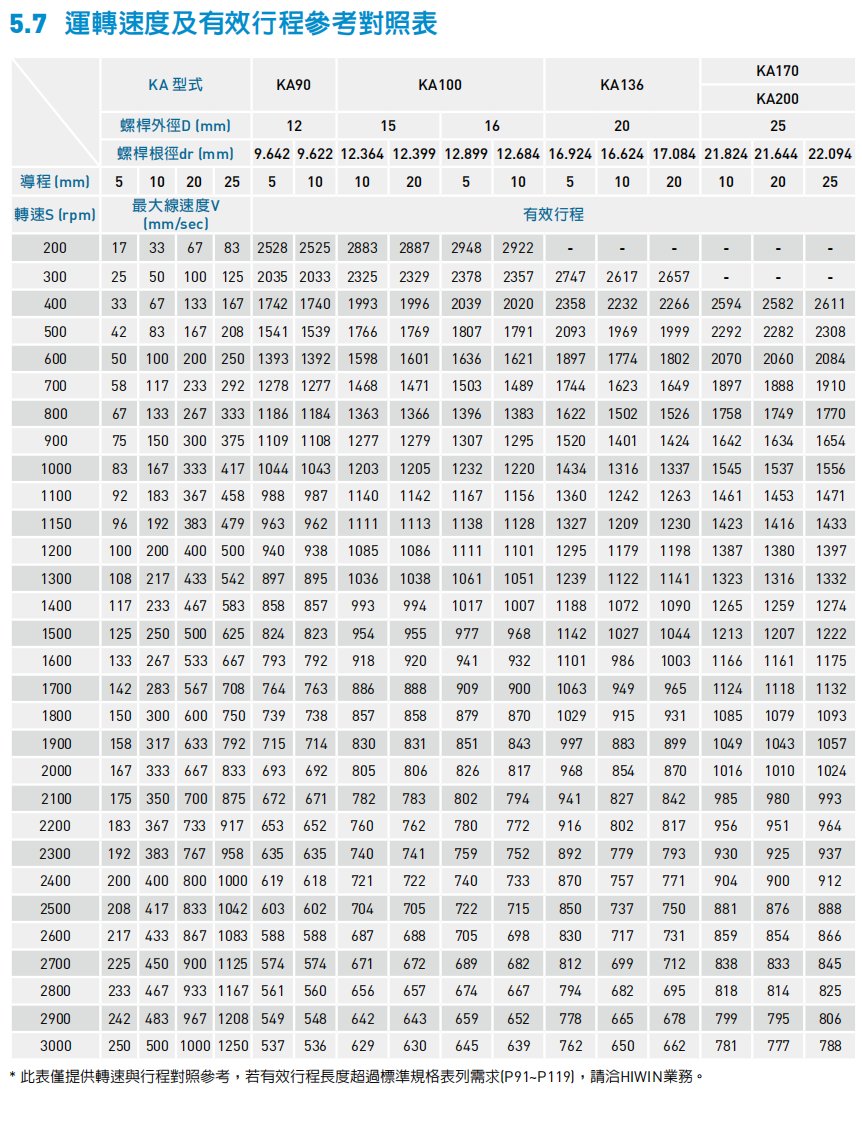

注意：有效行程超过型录上所列共振长度时可能发生振动，应降低运转速度，请参见“速度”项的说明。
5. 平台型式
目前均为标准负荷设计。如有超过表列额定动负载或最大可搬重量的重负荷需求，请洽HIWIN业务，提供特殊
规划设计服务。
6. 马达法兰

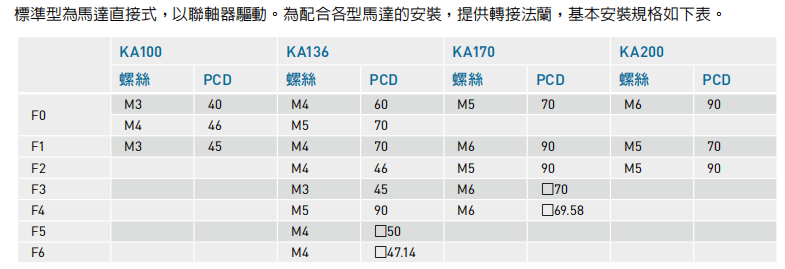

标准型为马达直接式，以联轴器驱动。为配合各型马达的安装，提供转接法兰，基本安装规格如下表。

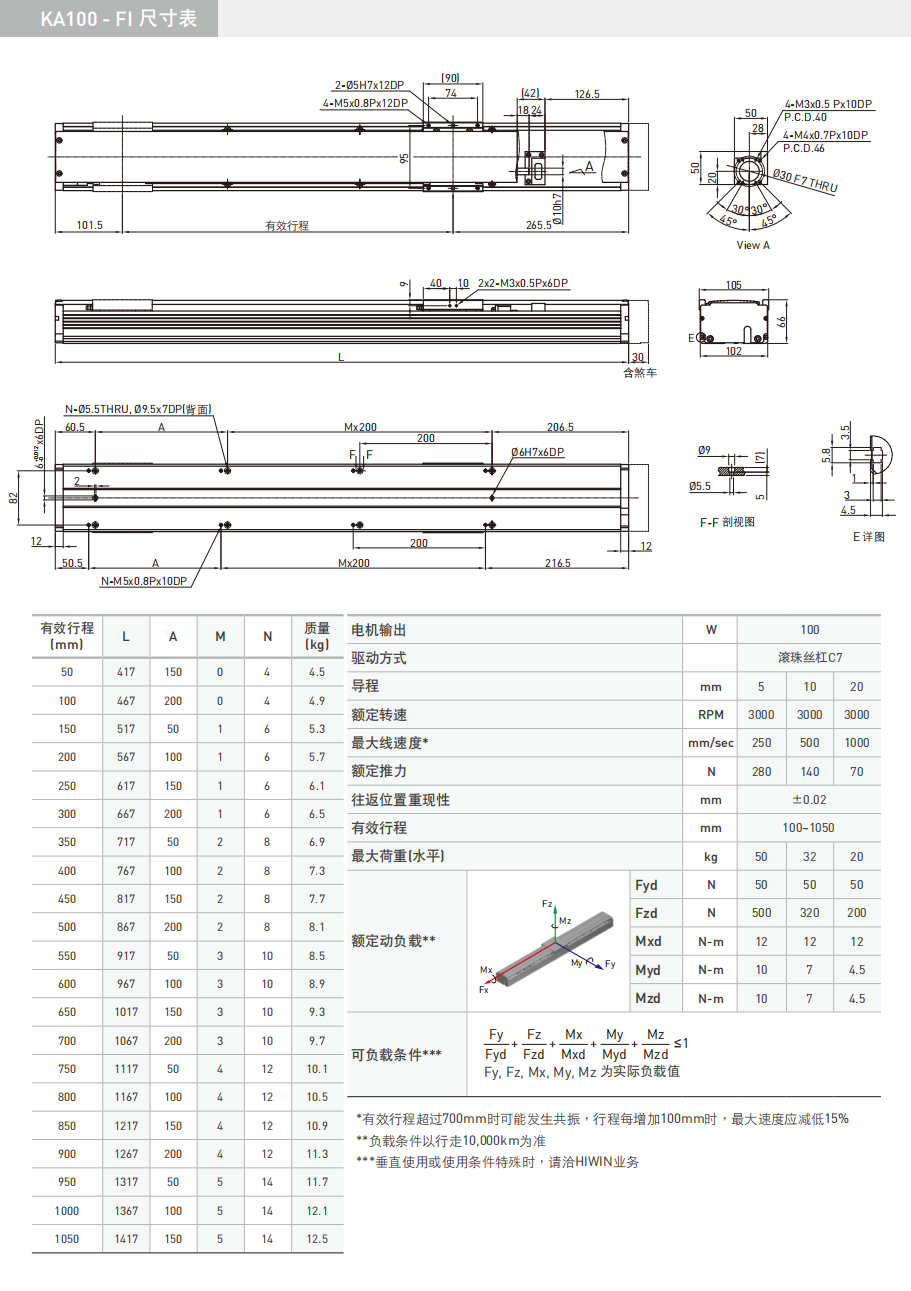

FI ：马达内藏式，以联轴器驱动。 FL：马达左侧接式，以皮带轮驱动。 FR：马达右侧接式，以皮带轮驱动。
FI ：马达内藏式，以联轴器驱动。
FL：马达左侧接式，以皮带轮驱动。 FR：马达右侧接式，以皮带轮驱动。
各法兰相关尺寸请参阅附录。
各法兰相关尺寸请参阅附录。
7. 铝护盖
标准件均附铝护盖。U：表示不装护盖。
8. 极限开关
表列数种供选择。若拟採用其他型式，请洽HIWIN业务注明。
9. 马达
马达规格:可参考第128页。
无记号：不附马达。若由客户自备马达，HIWIN代客组装，请洽HIWIN业务注明。
M：附马达。常用马达型式请参阅附录，如拟採用其他型式，请洽HIWIN业务注明。
3. 精度
表示K A往返位置重现性的精度。滚珠螺杆型式的重现精度为C：标准级＝±0.02mm，P：精密级＝
±0.01mm。时规皮带型式重现精度为C：标准级＝±0.1mm。
往返位置重现性表示KA滑台往返移动过程中，到达某一定点位置的误差，取全行程中误差的最大值。
注意：KA产品并未标示绝对定位精度。
4. 有效行程
表示KA滑台的移动范围，单位mm。
注意：有效行程超过型录上所列共振长度时可能发生振动，应降低运转速度，请参见“速度”项的说明。
5. 平台型式
目前均为标准负荷设计。如有超过表列额定动负载或最大可搬重量的重负荷需求，请洽HIWIN业务，提供特殊
规划设计服务。
6. 马达法兰
标准型为马达直接式，以联轴器驱动。为配合各型马达的安装，提供转接法兰，基本安装规格如下表。
FD：马达下接式，以皮带轮驱动。 FI ：马达内藏式，以联轴器驱动。
FL：马达左侧接式，以皮带轮驱动。 FR：马达右侧接式，以皮带轮驱动。
各法兰相关尺寸请参阅附录。
7. 铝护盖
标准件均附铝护盖。U：表示不装护盖。
8. 极限开关
表列数种供选择。若拟採用其他型式，请洽HIWIN业务注明。
9. 马达
马达规格:可参考第128页。
无记号：不附马达。若由客户自备马达，HIWIN代客组装，请洽HIWIN业务注明。
M：附马达。常用马达型式请参阅附录，如拟採用其他型式，请洽HIWIN业务注明。

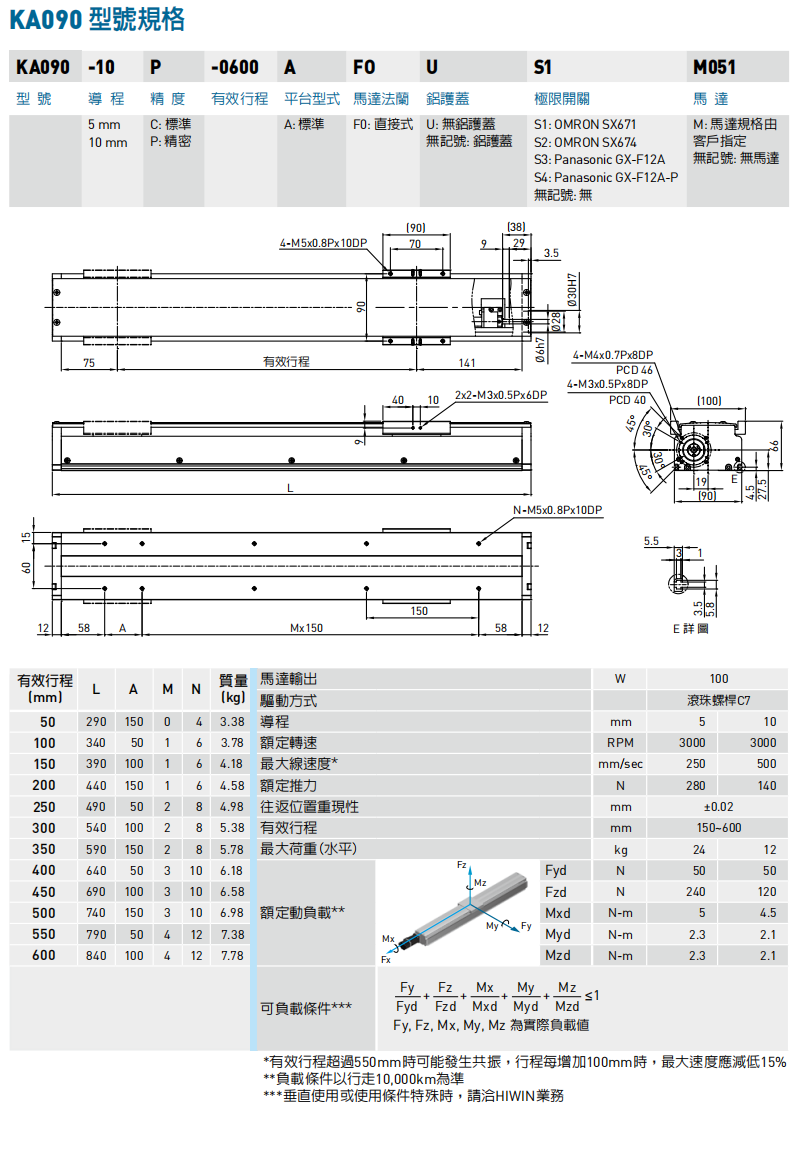

KA90-F0（直接式）尺寸表 C级是±0.01mm P级是±0.005mm
马达连接方式： F0（直接式）
C级05导程 C级10导程
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA90-05C-50A-F0 KA90-10C-50A-F0
KA90-05C-100A-F0 KA90-10C-100A-F0
KA90-05C-150A-F0 KA90-10C-150A-F0
KA90-05C-200A-F0 KA90-10C-200A-F0
KA90-05C-250A-F0 KA90-10C-250A-F0
KA90-05C-300A-F0 KA90-10C-300A-F0
KA90-05C-350A-F0 KA90-10C-350A-F0
KA90-05C-400A-F0 KA90-10C-400A-F0
KA90-05C-450A-F0 KA90-10C-450A-F0
KA90-05C-500A-F0 KA90-10C-500A-F0
KA90-05C-550A-F0 KA90-10C-550A-F0
KA90-05C-600A-F0 KA90-10C-600A-F0
P级05导程 P级10导程
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA90-05P-50A-F0 KA90-10P-50A-F0
KA90-05P-100A-F0 KA90-10P-100A-F0
KA90-05P-150A-F0 KA90-10P-150A-F0
KA90-05P-200A-F0 KA90-10P-200A-F0
KA90-05P-250A-F0 KA90-10P-250A-F0
KA90-05P-300A-F0 KA90-10P-300A-F0
KA90-05P-350A-F0 KA90-10P-350A-F0
KA90-05P-400A-F0 KA90-10P-400A-F0
KA90-05P-450A-F0 KA90-10P-450A-F0
KA90-05P-500A-F0 KA90-10P-500A-F0
KA90-05P-550A-F0 KA90-10P-550A-F0
KA90-05P-600A-F0 KA90-10P-600A-F0

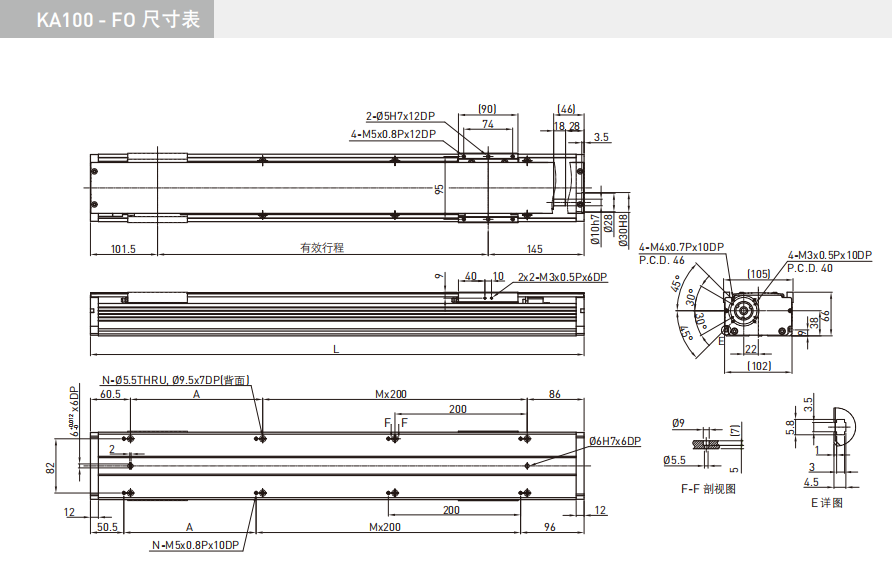

KA100-F0（直接式）尺寸表 C级是±0.01mm P级是±0.005mm
马达连接方式：F0（直接式） FI（内藏内) FD（下接式) FL（左接式） FR（右接式）
马达连接方式：F0（直接式)
C级05导程 C级10导程 C级20导程
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA100-05C-50A-F0 KA100-10C-50A-F0 KA100-20C-50A-F0
KA100-05C-100A-F0 KA100-10C-100A-F0 KA100-20C-100A-F0
KA100-05C-150A-F0 KA100-10C-150A-F0 KA100-20C-150A-F0
KA100-05C-200A-F0 KA100-10C-200A-F0 KA100-20C-200A-F0
KA100-05C-250A-F0 KA100-10C-250A-F0 KA100-20C-250A-F0
KA100-05C-300A-F0 KA100-10C-300A-F0 KA100-20C-300A-F0
KA100-05C-350A-F0 KA100-10C-350A-F0 KA100-20C-350A-F0
KA100-05C-400A-F0 KA100-10C-400A-F0 KA100-20C-400A-F0
KA100-05C-450A-F0 KA100-10C-450A-F0 KA100-20C-450A-F0
KA100-05C-500A-F0 KA100-10C-500A-F0 KA100-20C-500A-F0
KA100-05C-550A-F0 KA100-10C-550A-F0 KA100-20C-550A-F0
KA100-05C-600A-F0 KA100-10C-600A-F0 KA100-20C-600A-F0
KA100-05C-650A-F0 KA100-10C-650A-F0 KA100-20C-650A-F0
KA100-05C-700A-F0 KA100-10C-700A-F0 KA100-20C-700A-F0
KA100-05C-750A-F0 KA100-10C-750A-F0 KA100-20C-750A-F0
KA100-05C-800A-F0 KA100-10C-800A-F0 KA100-20C-800A-F0
KA100-05C-850A-F0 KA100-10C-850A-F0 KA100-20C-850A-F0
KA100-05C-900A-F0 KA100-10C-900A-F0 KA100-20C-900A-F0
KA100-05C-950A-F0 KA100-10C-950A-F0 KA100-20C-950A-F0
KA100-05C-1000A-F0 KA100-10C-1000A-F0 KA100-20C-900A-F0
KA100-05C-1050A-F0 KA100-10C-1050A-F0 KA100-20C-1050A-F0
P级05导程 P级10导程 P级20导程
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA100-05P-50A-F0 KA100-10P-50A-F0 KA100-20P-50A-F0
KA100-05P-100A-F0 KA100-10P-100A-F0 KA100-20P-100A-F0
KA100-05P-150A-F0 KA100-10P-150A-F0 KA100-20P-150A-F0
KA100-05P-200A-F0 KA100-10P-200A-F0 KA100-20P-200A-F0
KA100-05P-250A-F0 KA100-10P-250A-F0 KA100-20P-250A-F0
KA100-05P-300A-F0 KA100-10P-300A-F0 KA100-20P-300A-F0
KA100-05P-350A-F0 KA100-10P-350A-F0 KA100-20P-350A-F0
KA100-05P-400A-F0 KA100-10P-400A-F0 KA100-20P-400A-F0
KA100-05P-450A-F0 KA100-10P-450A-F0 KA100-20P-450A-F0
KA100-05P-500A-F0 KA100-10P-500A-F0 KA100-20P-500A-F0
KA100-05P-550A-F0 KA100-10P-550A-F0 KA100-20P-550A-F0
KA100-05P-600A-F0 KA100-10P-600A-F0 KA100-20P-600A-F0
KA100-05P-650A-F0 KA100-10P-650A-F0 KA100-20P-650A-F0
KA100-05P-700A-F0 KA100-10P-700A-F0 KA100-20P-700A-F0
KA100-05P-750A-F0 KA100-10P-750A-F0 KA100-20P-750A-F0
KA100-05P-800A-F0 KA100-10P-800A-F0 KA100-20P-800A-F0
KA100-05P-850A-F0 KA100-10P-850A-F0 KA100-20P-850A-F0
KA100-05P-900A-F0 KA100-10P-900A-F0 KA100-20P-900A-F0
KA100-05P-950A-F0 KA100-10P-950A-F0 KA100-20P-950A-F0
KA100-05P-1000A-F0 KA100-10P-1000A-F0 KA100-20P-900A-F0
KA100-05P-1050A-F0 KA100-10P-1050A-F0 KA100-20P-050A-F0

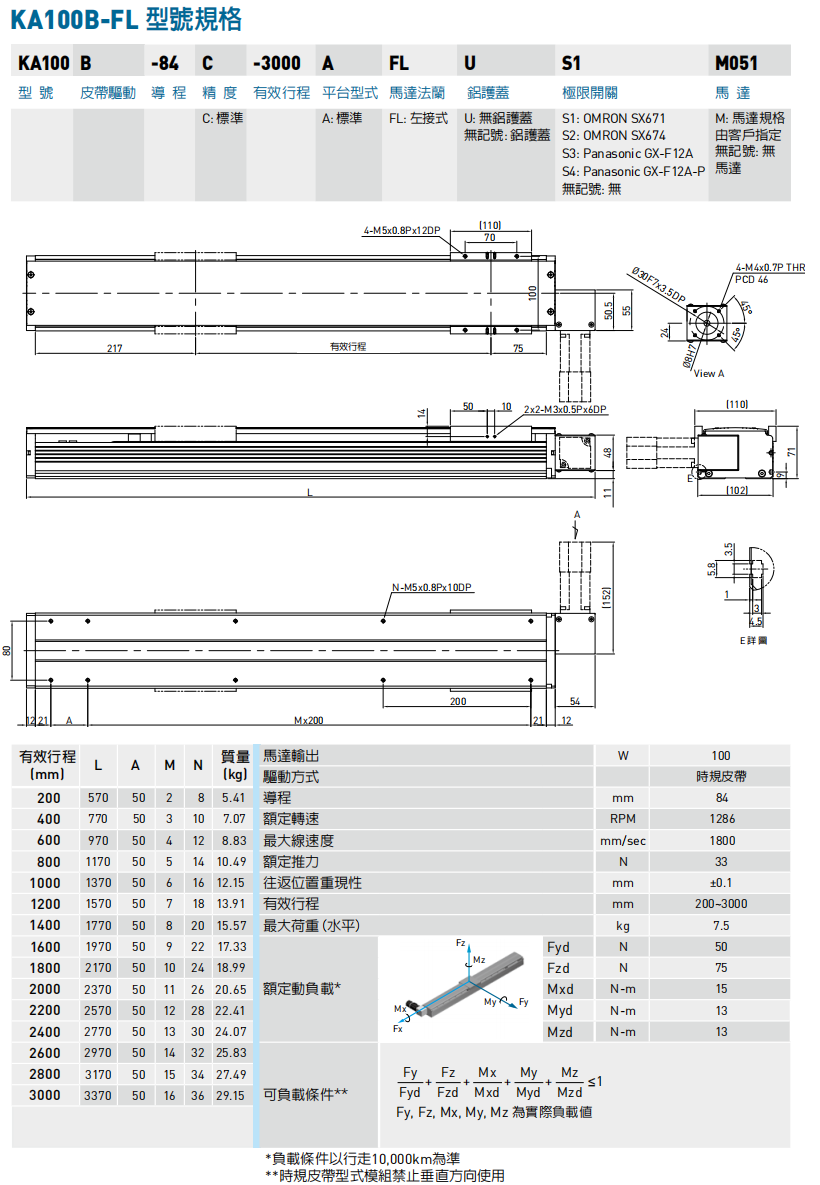

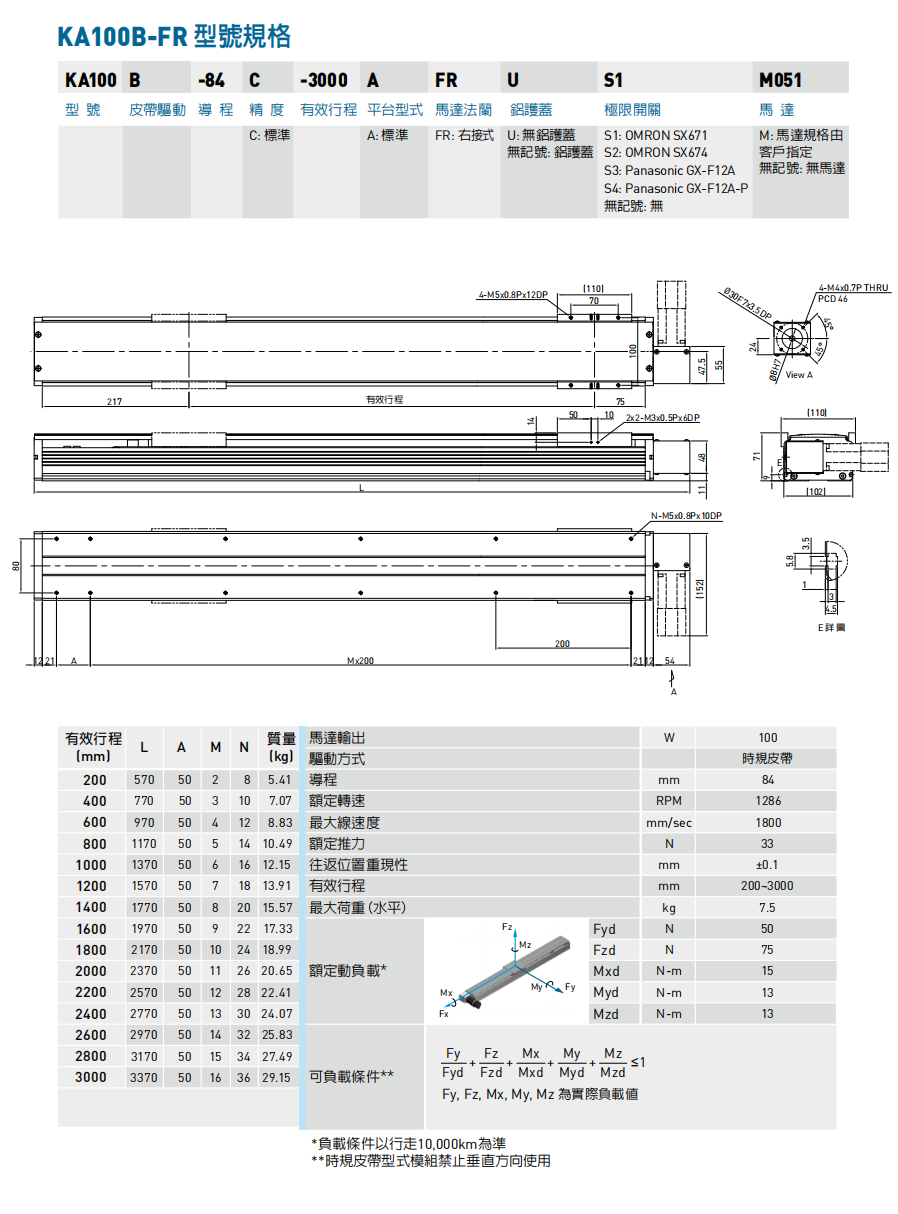

KA100B-皮带模组尺寸表 精度C级=±0.1mm
马达连接方式：FL（左接式） FR（右接式）
FL（左接式 ） FR（右接式）
KA100B-84C-200A-FL KA100B-84C-200A-FR
KA100B-84C-400A-FL KA100B-84C-400A-FR
KA100B-84C-600A-FL KA100B-84C-600A-FR
KA100B-84C-800A-FL KA100B-84C-800A-FR
KA100B-84C-1000A-FL KA100B-84C-1000A-FR
KA100B-84C-1200A-FL KA100B-84C-1200A-FR
KA100B-84C-1400A-FL KA100B-84C-1400A-FR
KA100B-84C-1600A-FL KA100B-84C-1600A-FR
KA100B-84C-1800A-FL KA100B-84C-1800A-FR
KA100B-84C-2000A-FL KA100B-84C-2000A-FR
KA100B-84C-2200A-FL KA100B-84C-2200A-FR
KA100B-84C-2400A-FL KA100B-84C-2400A-FR
KA100B-84C-2600A-FL KA100B-84C-2600A-FR
KA100B-84C-2800A-FL KA100B-84C-2800A-FR
KA100B-84C-3000A-FL KA100B-84C-3000A-FR
KA136-F0（直接式）尺寸表 C级是±0.01mm P级是±0.005mm
马达连接方式：F0-F6（直接式） FI（内藏内) FD（下接式) FL（左接式） FR（右接式）
C级05导程 C级10导程 C级20导程
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA136-05C-50A-F0 KA136-10C-50A-F0 KA136-20C-50A-F0
KA136-05C-100A-F0 KA136-10C-100A-F0 KA136-20C-100A-F0
KA136-05C-150A-F0 KA136-10C-150A-F0 KA136-20C-150A-F0
KA136-05C-200A-F0 KA136-10C-200A-F0 KA136-20C-200A-F0
KA136-05C-250A-F0 KA136-10C-250A-F0 KA136-20C-250A-F0
KA136-05C-300A-F0 KA136-10C-300A-F0 KA136-20C-300A-F0
KA136-05C-350A-F0 KA136-10C-350A-F0 KA136-20C-350A-F0
KA136-05C-400A-F0 KA136-10C-400A-F0 KA136-20C-400A-F0
KA136-05C-450A-F0 KA136-10C-450A-F0 KA136-20C-450A-F0
KA136-05C-500A-F0 KA136-10C-500A-F0 KA136-20C-500A-F0
KA136-05C-550A-F0 KA136-10C-550A-F0 KA136-20C-550A-F0
KA136-05C-600A-F0 KA136-10C-600A-F0 KA136-20C-600A-F0
KA136-05C-650A-F0 KA136-10C-650A-F0 KA136-20C-650A-F0
KA136-05C-700A-F0 KA136-10C-700A-F0 KA136-20C-700A-F0
KA136-05C-750A-F0 KA136-10C-750A-F0 KA136-20C-750A-F0
KA136-05C-800A-F0 KA136-10C-800A-F0 KA136-20C-800A-F0
KA136-05C-850A-F0 KA136-10C-850A-F0 KA136-20C-850A-F0
KA136-05C-900A-F0 KA136-10C-900A-F0 KA136-20C-900A-F0
KA136-05C-950A-F0 KA136-10C-950A-F0 KA136-20C-950A-F0
KA136-05C-1000A-F0 KA136-10C-1000A-F0 KA136-20C-900A-F0
KA136-05C-1050A-F0 KA136-10C-1050A-F0 KA136-20C-1050A-F0
P级05导程 P级10导程 P级20导程
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA136-05P-50A-F0 KA136-10P-50A-F0 KA136-20P-50A-F0
KA136-05P-100A-F0 KA136-10P-100A-F0 KA136-20P-100A-F0
KA136-05P-150A-F0 KA136-10P-150A-F0 KA136-20P-150A-F0
KA136-05P-200A-F0 KA136-10P-200A-F0 KA136-20P-200A-F0
KA136-05P-250A-F0 KA136-10P-250A-F0 KA136-20P-250A-F0
KA136-05P-300A-F0 KA136-10P-300A-F0 KA136-20P-300A-F0
KA136-05P-350A-F0 KA136-10P-350A-F0 KA136-20P-350A-F0
KA136-05P-400A-F0 KA136-10P-400A-F0 KA136-20P-400A-F0
KA136-05P-450A-F0 KA136-10P-450A-F0 KA136-20P-450A-F0
KA136-05P-500A-F0 KA136-10P-500A-F0 KA136-20P-500A-F0
KA136-05P-550A-F0 KA136-10P-550A-F0 KA136-20P-550A-F0
KA136-05P-600A-F0 KA136-10P-600A-F0 KA136-20P-600A-F0
KA136-05P-650A-F0 KA136-10P-650A-F0 KA136-20P-650A-F0
KA136-05P-700A-F0 KA136-10P-700A-F0 KA136-20P-700A-F0
KA136-05P-750A-F0 KA136-10P-750A-F0 KA136-20P-750A-F0
KA136-05P-800A-F0 KA136-10P-800A-F0 KA136-20P-800A-F0
KA136-05P-850A-F0 KA136-10P-850A-F0 KA136-20P-850A-F0
KA136-05P-900A-F0 KA136-10P-900A-F0 KA136-20P-900A-F0
KA136-05P-950A-F0 KA136-10P-950A-F0 KA136-20P-950A-F0
KA136-05P-1000A-F0 KA136-10P-1000A-F0 KA136-20P-900A-F0
KA136-05P-1050A-F0 KA136-10P-1050A-F0 KA136-20P-1050A-F0

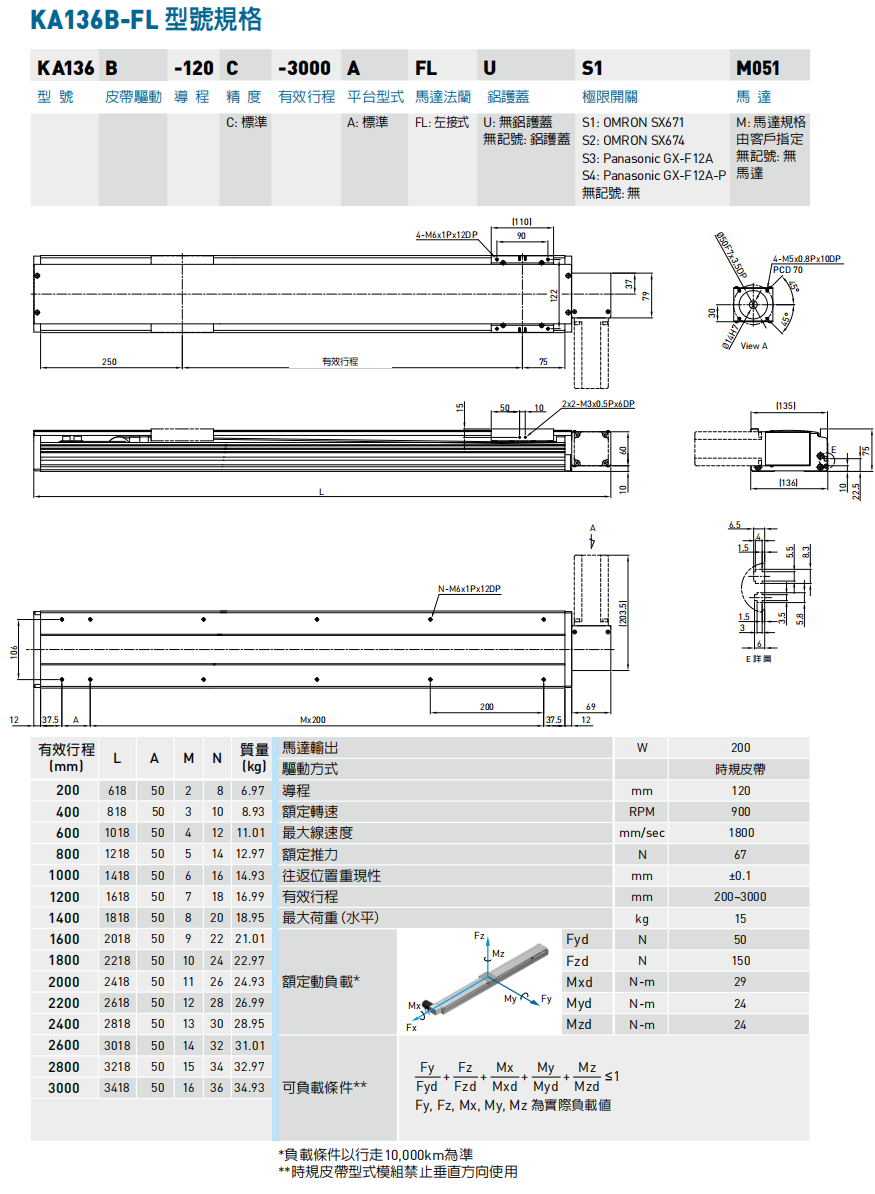

KA136B-皮带模组尺寸表 精度C级=±0.1mm
马达连接方式：FL（左接式） FR（右接式）
FL（左接式 ） FR（右接式）
KA136B-120C-200A-FL KA136B-120C-200A-FR
KA136B-120C-400A-FL KA136B-120C-400A-FR
KA136B-120C-600A-FL KA136B-120C-600A-FR
KA136B-120C-800A-FL KA136B-120C-800A-FR
KA136B-120C-1000A-FL KA136B-120C-1000A-FR
KA136B-120C-1200A-FL KA136B-120C-1200A-FR
KA136B-120C-1400A-FL KA136B-120C-1400A-FR
KA136B-120C-1600A-FL KA136B-120C-1600A-FR
KA136B-120C-1800A-FL KA136B-120C-1800A-FR
KA136B-120C-2000A-FL KA136B-120C-2000A-FR
KA136B-120C-2200A-FL KA136B-120C-2200A-FR
KA136B-120C-2400A-FL KA136B-120C-2400A-FR
KA136B-120C-2600A-FL KA136B-120C-2600A-FR
KA136B-120C-2800A-FL KA136B-120C-2800A-FR
KA136B-120C-3000A-FL KA136B-120C-3000A-FR

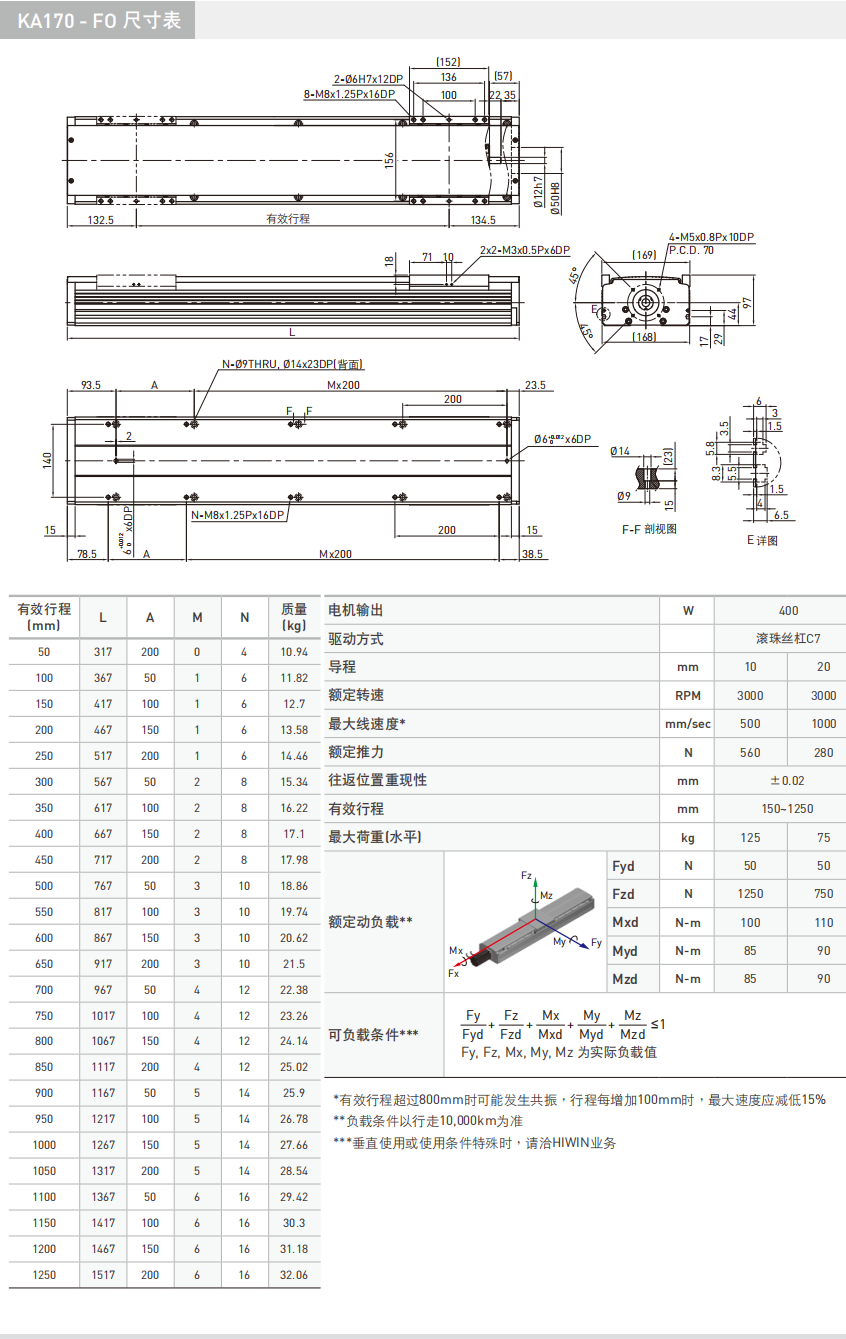

KA170-F0（直接式）尺寸表 C级是±0.01mm P级是±0.005mm
马达连接方式：F0-F4（直接式） FI（内藏内) FD（下接式) FL（左接式） FR（右接式）
C级10导程 C级 20导程
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0 KA136-10C-50A-F0 KA136-20C-50A-F0
KA170-10C-100A-F0 KA170-20C-100A-F0
KA170-10C-150A-F0 KA170-20C-150A-F0
KA170-10C-200A-F0 KA170-20C-200A-F0
KA170-10C-250A-F0 KA170-20C-250A-F0
KA170-10C-300A-F0 KA170-20C-300A-F0
KA170-10C-350A-F0 KA170-20C-350A-F0
KA170-10C-400A-F0 KA170-20C-400A-F0
KA170-10C-450A-F0 KA170-20C-450A-F0
KA170-10C-500A-F0 KA170-20C-500A-F0
KA170-10C-550A-F0 KA170-20C-550A-F0
KA170-10C-600A-F0 KA170-20C-600A-F0
KA170-10C-650A-F0 KA170-20C-650A-F0
KA170-10C-700A-F0 KA170-20C-700A-F0
KA170-10C-750A-F0 KA170-20C-750A-F0
KA170-10C-800A-F0 KA170-20C-800A-F0
KA170-10C-850A-F0 KA170-20C-850A-F0
KA170-10C-900A-F0 KA170-20C-900A-F0
KA170-10C-950A-F0 KA170-20C-950A-F0
KA170-10C-1000A-F0 KA170-20C-900A-F0
KA170-10C-1050A-F0 KA170-20C-1050A-F0
KA170-10C-1100A-F0 KA170-20C-1100A-F0
KA170-10C-1150A-F0 KA170-20C-1150A-F0
KA170-10C-1200A-F0 KA170-20C-1200A-F0
KA170-10C-1250A-F0 KA170-20C-1250A-F0
P级10导程 P级 20导程
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0 KA136-10C-50A-F0 KA136-20C-50A-F0
KA170-10P-100A-F0 KA170-20P-100A-F0
KA170-10P-150A-F0 KA170-20P-150A-F0
KA170-10P-200A-F0 KA170-20P-200A-F0
KA170-10P-250A-F0 KA170-20P-250A-F0
KA170-10P-300A-F0 KA170-20P-300A-F0
KA170-10P-350A-F0 KA170-20P-350A-F0
KA170-10P-400A-F0 KA170-20P-400A-F0
KA170-10P-450A-F0 KA170-20P-450A-F0
KA170-10P-500A-F0 KA170-20P-500A-F0
KA170-10P-550A-F0 KA170-20P-550A-F0
KA170-10P-600A-F0 KA170-20P-600A-F0
KA170-10P-650A-F0 KA170-20P-650A-F0
KA170-10P-700A-F0 KA170-20P-700A-F0
KA170-10P-750A-F0 KA170-20P-750A-F0
KA170-10P-800A-F0 KA170-20P-800A-F0
KA170-10P-850A-F0 KA170-20P-850A-F0
KA170-10P-900A-F0 KA170-20P-900A-F0
KA170-10P-950A-F0 KA170-20P-950A-F0
KA170-10P-1000A-F0 KA170-20P-900A-F0
KA170-10P-1050A-F0 KA170-20P-1050A-F0
KA170-10P-1100A-F0 KA170-20P-1100A-F0
KA170-10P-1150A-F0 KA170-20P-1150A-F0
KA170-10P-1200A-F0 KA170-20P-1200A-F0
KA170-10P-1250A-F0 KA170-20P-1250A-F0

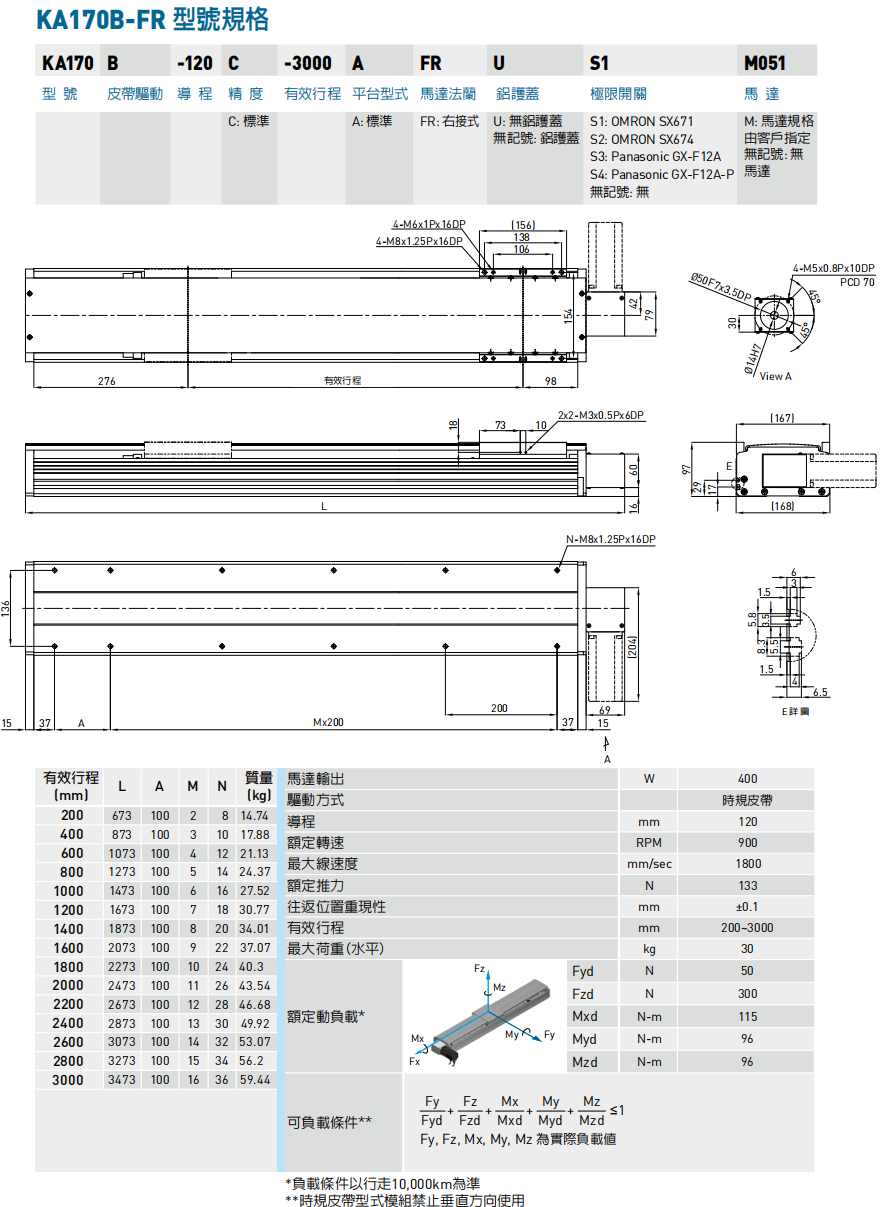

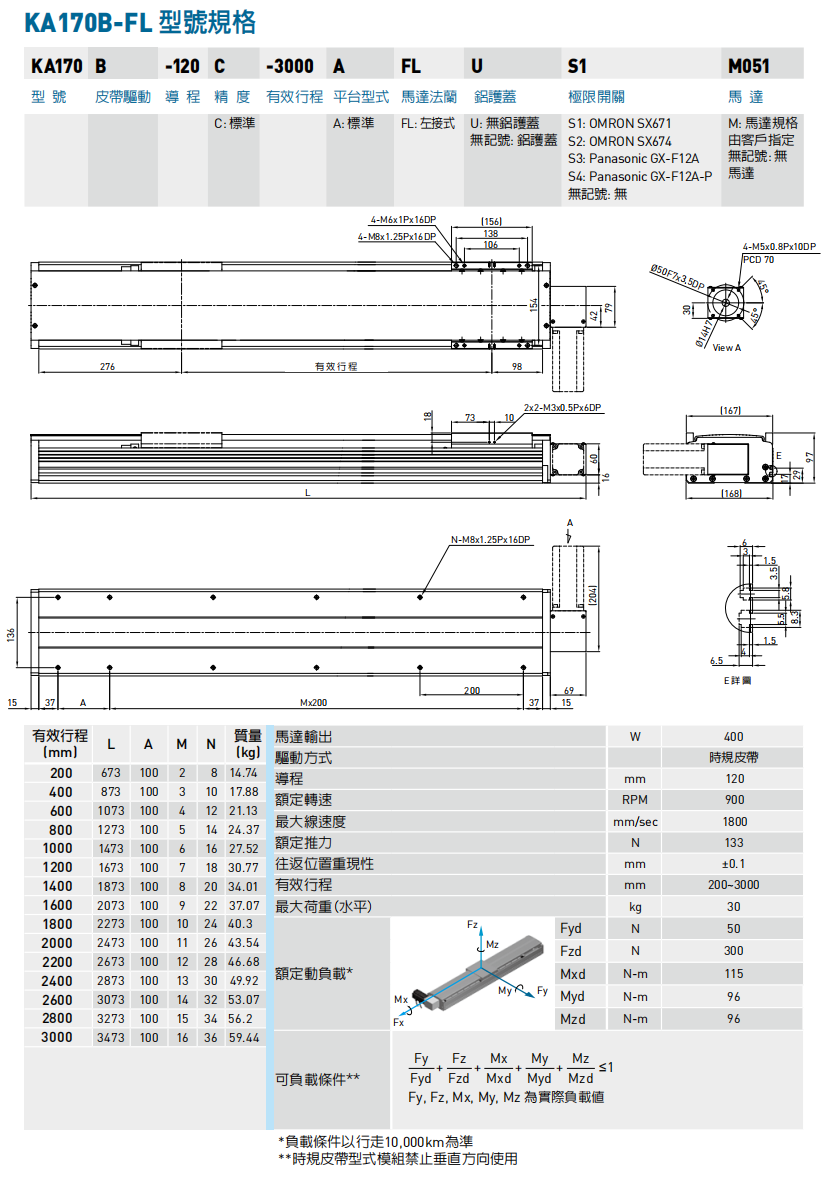

KA170B-皮带模组尺寸表 精度C级=±0.1mm
马达连接方式：FL（左接式） FR（右接式）
FL（左接式 ） FR（右接式）
KA170B-120C-200A-FL KA170B-120C-200A-FR
KA170B-120C-400A-FL KA170B-120C-400A-FR
KA170B-120C-600A-FL KA170B-120C-600A-FR
KA170B-120C-800A-FL KA170B-120C-800A-FR
KA170B-120C-1000A-FL KA170B-120C-1000A-FR
KA170B-120C-1200A-FL KA170B-120C-1200A-FR
KA170B-120C-1400A-FL KA170B-120C-1400A-FR
KA170B-120C-1600A-FL KA170B-120C-1600A-FR
KA170B-120C-1800A-FL KA170B-120C-1800A-FR
KA170B-120C-2000A-FL KA170B-120C-2000A-FR
KA170B-120C-2200A-FL KA170B-120C-2200A-FR
KA170B-120C-2400A-FL KA170B-120C-2400A-FR
KA170B-120C-2600A-FL KA170B-120C-2600A-FR
KA170B-120C-2800A-FL KA170B-120C-2800A-FR
KA170B-120C-3000A-FL KA170B-120C-3000A-FR
KA200-F0（直接式）尺寸表 C级是±0.01mm P级是±0.005mm
马达连接方式：F0-F2（直接式） FI（内藏内) FD（下接式) FL（左接式） FR（右接式）
C级10导程 C级25导程
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0 KA136-10C-50A-F0 KA136-20C-50A-F0
KA200-10C-100A-F0 KA200-25C-100A-F0
KA200-10C-150A-F0 KA200-25C-150A-F0
KA200-10C-200A-F0 KA200-25C-200A-F0
KA200-10C-250A-F0 KA200-25C-250A-F0
KA200-10C-300A-F0 KA200-25C-300A-F0
KA200-10C-350A-F0 KA200-25C-350A-F0
KA200-10C-400A-F0 KA200-25C-400A-F0
KA200-10C-450A-F0 KA200-25C-450A-F0
KA200-10C-500A-F0 KA200-25C-500A-F0
KA200-10C-550A-F0 KA200-25C-550A-F0
KA200-10C-600A-F0 KA200-25C-600A-F0
KA200-10C-650A-F0 KA200-25C-650A-F0
KA200-10C-700A-F0 KA200-25C-700A-F0
KA200-10C-750A-F0 KA200-25C-750A-F0
KA200-10C-800A-F0 KA200-25C-800A-F0
KA200-10C-850A-F0 KA200-25C-850A-F0
KA200-10C-900A-F0 KA200-25C-900A-F0
KA200-10C-950A-F0 KA200-25C-950A-F0
KA200-10C-1000A-F0 KA200-25C-900A-F0
KA200-10C-1050A-F0 KA200-25C-1050A-F0
KA200-10C-1100A-F0 KA200-25C-1100A-F0
KA200-10C-1150A-F0 KA200-25C-1150A-F0
KA200-10C-1200A-F0 KA200-25C-1200A-F0
KA200-10C-1250A-F0 KA200-25C-1250A-F0
P级10导程 P级25导程
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0
KA100-05C-50A-F0
KA100-05C-100A-F0
KA100-05C-150A-F0
KA100-05C-200A-F0
KA100-05C-250A-F0
KA100-05C-300A-F0
KA100-05C-350A-F0
KA100-05C-400A-F0
KA100-05C-450A-F0
KA100-05C-500A-F0
KA100-05C-550A-F0
KA100-05C-600A-F0
KA100-05C-650A-F0
KA100-05C-700A-F0
KA100-05C-750A-F0
KA100-05C-800A-F0
KA100-05C-850A-F0
KA100-05C-900A-F0
KA100-05C-950A-F0
KA100-05C-1000A-F0
KA100-05C-1050A-F0 KA136-10C-50A-F0 KA136-20C-50A-F0
KA200-10P-100A-F0 KA200-25P-100A-F0
KA200-10P-150A-F0 KA200-25P-150A-F0
KA200-10P-200A-F0 KA200-25P-200A-F0
KA200-10P-250A-F0 KA200-25P-250A-F0
KA200-10P-300A-F0 KA200-25P-300A-F0
KA200-10P-350A-F0 KA200-25P-350A-F0
KA200-10P-400A-F0 KA200-25P-400A-F0
KA200-10P-450A-F0 KA200-25P-450A-F0
KA200-10P-500A-F0 KA200-25P-500A-F0
KA200-10P-550A-F0 KA200-25P-550A-F0
KA200-10P-600A-F0 KA200-25P-600A-F0
KA200-10P-650A-F0 KA200-25P-650A-F0
KA200-10P-700A-F0 KA200-25P-700A-F0
KA200-10P-750A-F0 KA200-25P-750A-F0
KA200-10P-800A-F0 KA200-25P-800A-F0
KA200-10P-850A-F0 KA200-25P-850A-F0
KA200-10P-900A-F0 KA200-25P-900A-F0
KA200-10P-950A-F0 KA200-25P-950A-F0
KA200-10P-1000A-F0 KA200-25P-900A-F0
KA200-10P-1050A-F0 KA200-25P-1050A-F0
KA200-10P-1100A-F0 KA200-25P-1100A-F0
KA200-10P-1150A-F0 KA200-25P-1150A-F0
KA200-10P-1200A-F0 KA200-25P-1200A-F0
KA200-10P-1250A-F0 KA200-25P-1250A-F0
特征
安装与维护容易
低价格
高钢性
高重现精度±0.01mm
内置AC伺服马达(选配)
客制化行程
应用
高精密产业
FPD产业
自动送料机构
自动化视觉检测
自动化组装与点胶
电路板雕刻设备
吴女士 13527953137
相关标签：上银导轨 上银直线导轨 Hiwin导轨 上银KK模组
上一篇：没有了
下一篇：没有了
