详细说明
KC B-TYPE
单轴机器人

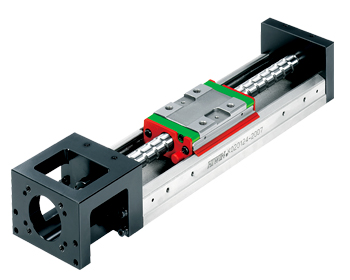

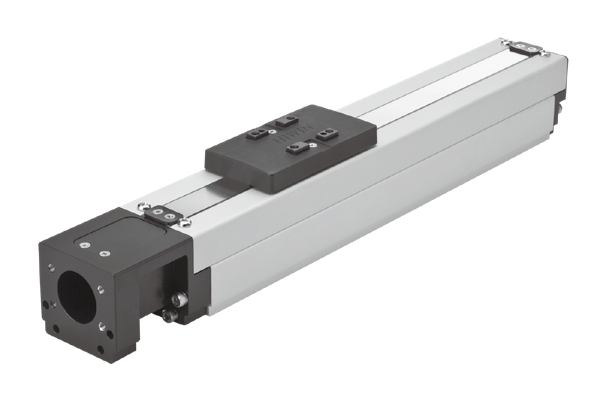

上银单轴机器人：KC50 B-TYPE

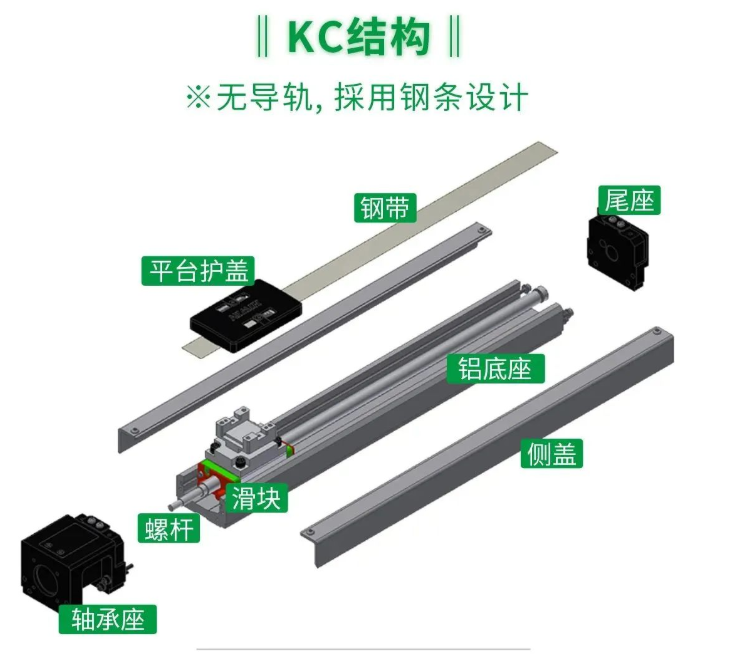

HIWINKC工业机器人主要是透过模组化设计，将滚珠螺杆和线性滑轨整合在一起。
藉由高精度的滚珠螺杆做为传动机构，并配合轻量化的U形轨道做为导引机构，以提供高精度、高效率、体积小、快速安装等特性。
选择HIWIN单轴机器人的6大理由

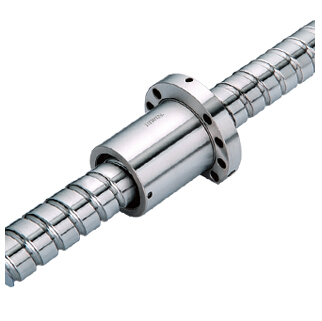

01:HIWIN滚珠丝杠&线性导轨Inside
全球知名的传动控制与系统科技专业制造者，符合RoHS标准，可靠的质量。
02:模块化的产品设计
节省客户组装时间与安装空间，降低组装失误率，有效提升客户设备质量。
03:轻量化高刚性铝挤型底座
整体银色的金属质感柔和，底座关键部位内空的倒角细节和去毛刺处理具备优质水准。
04:安装与维护容易
结构简单、便于加工、测量、装配和调整。限位开关的安装简单方便。底座已经预设一道背母沟槽，可在任意位置固定。

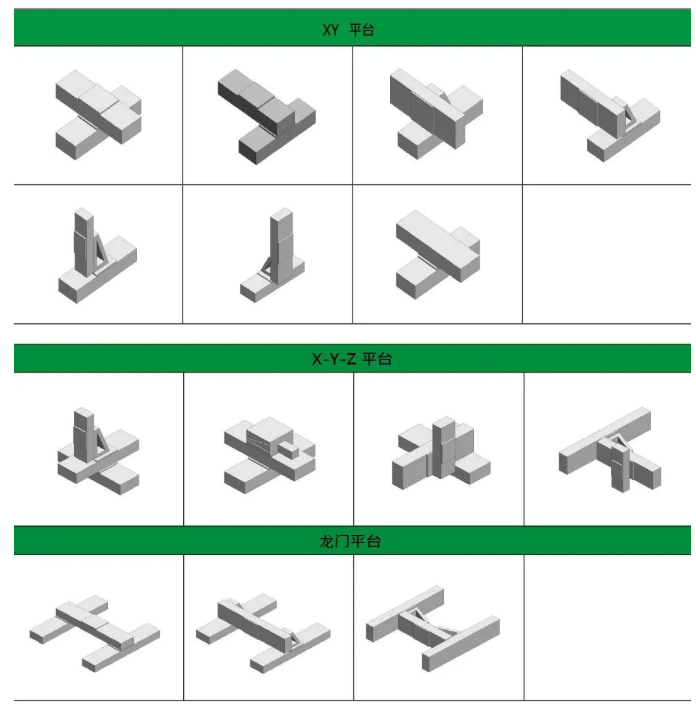

05:可客制化设计

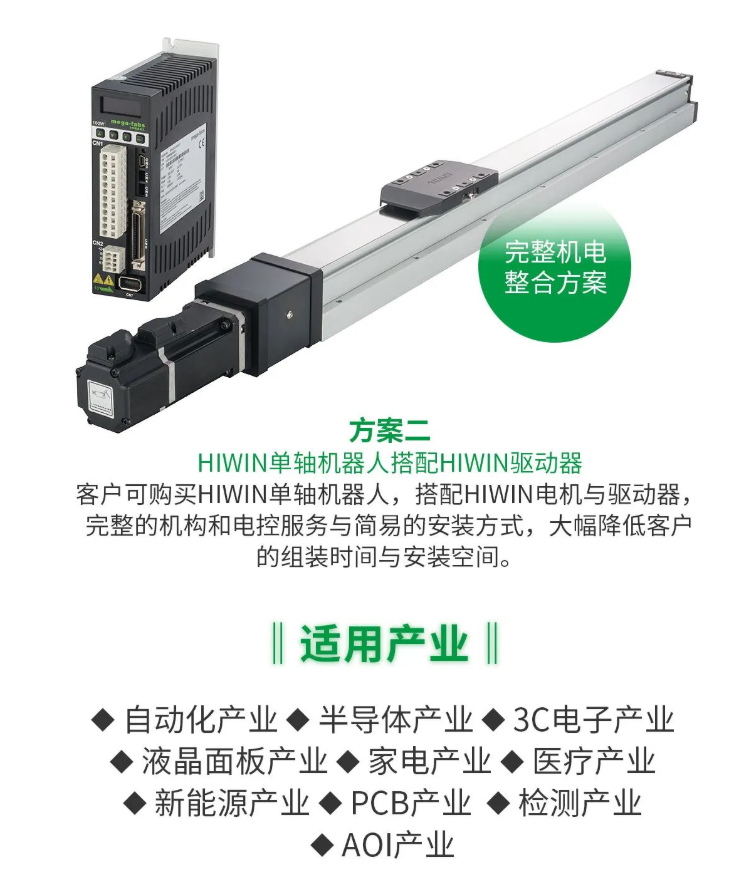

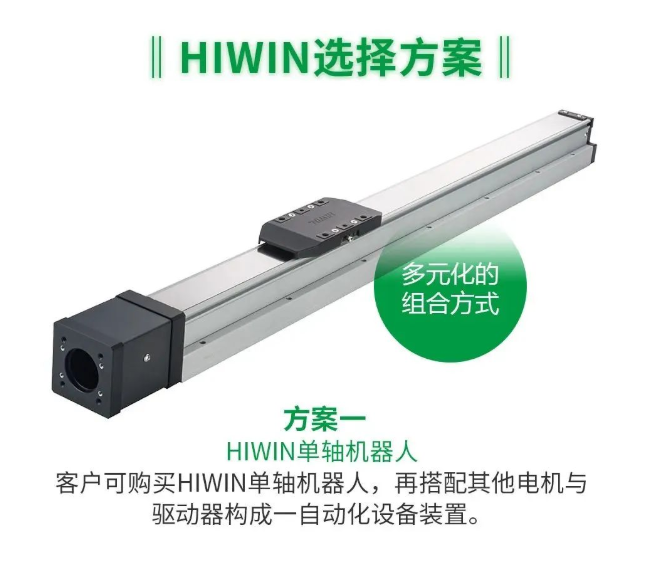

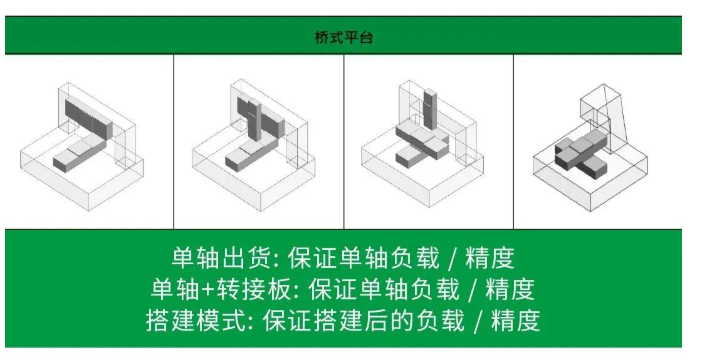

满足客户定制所需之单轴或组合设计成多轴出货。亦可直接搭配HIWIN完整的AC伺服电机产品线，依照客户需求，提供机电整合的模组化产品。大幅降低客户在设计及debug所花费的研发资源及人力，而能专注将资源及时间更有效的运用在自身的研发竞争力上。
06:服务客户实力
◆历练累积实力，服务于广泛产业。HIWIN懂客户需求，提供优秀的设计与解决方案。
◆苏州厂在地化实时服务、快速交货、系统整合的全方位能量。

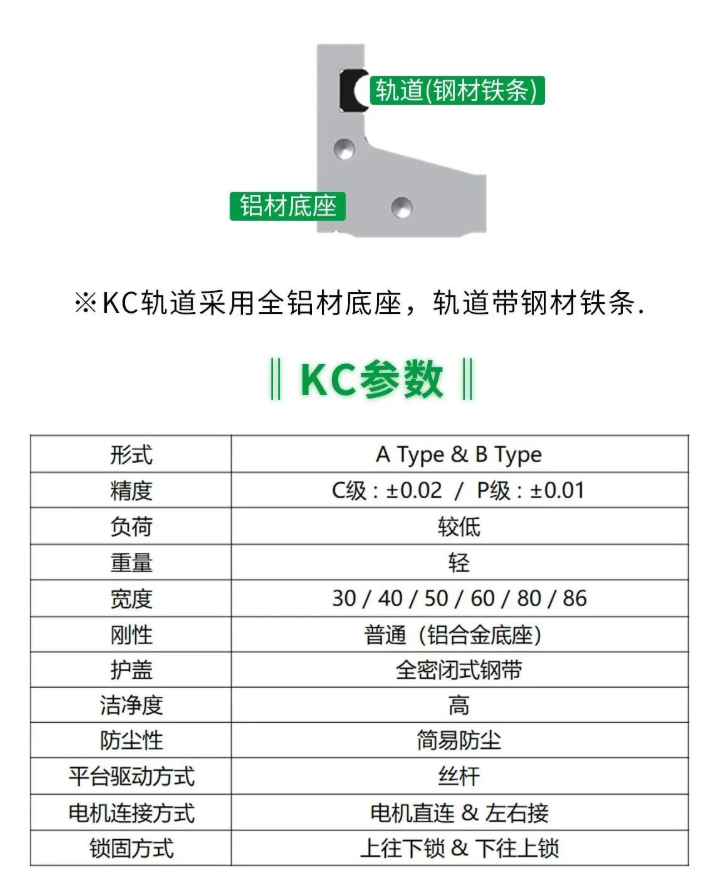

◎整合型轻量化铝挤型底座
◎安装容易
◎高重现精度
特性
◎整合型轻量化铝挤型底座
◎安装容易
◎高重现精度
产品特色/

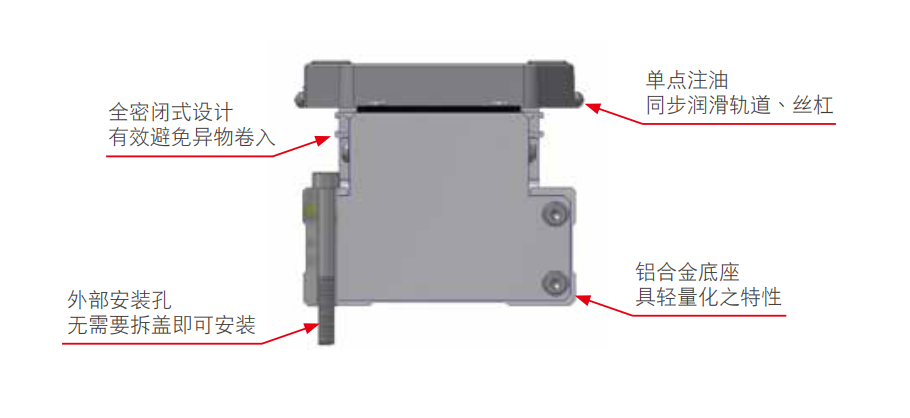

●便利安装:任何组装方式均无需拆除外盖
●保养便利:单点注油同步润滑轨道、丝杠，无需拆除任何配件(注1]
●更高性能:负荷能力提升10%~30%[注2]
注1 :建议每3个月、每100km进行保养、注油，若使用频率较高或极限荷重请务必缩短保养周期。
适用领域/

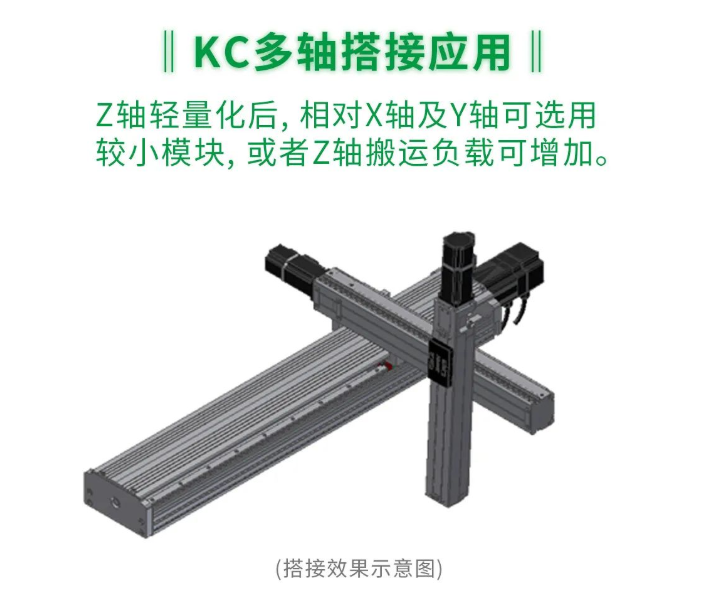

PCB制程设备、半导体设备、物料移载、锡焊设备、多轴搭接.等自动化产业运用。
◎自动化送料机构◎自动化检验设备◎自动化组装设备
精度/
◎滑台往返位置的重现性精度
C：标准级±0.01mmmm
P：精密级±0.005mm
* 注意：KC单轴机器人并未标示绝对定位精度。

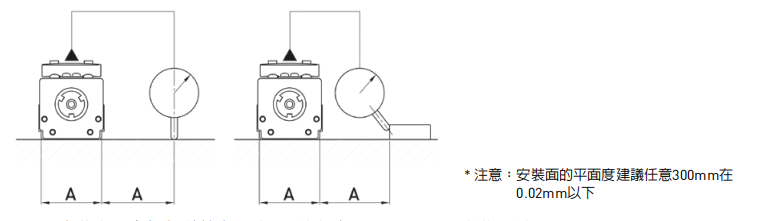

◎行走平行度
滑台基准面与底座安装基准面的平行度小于0.1 mm/m。
检验距离为底座的一倍宽度，方式如下：
负载规格
速度-负载关係图是依下述假设所建立的实施例，若有不同的使用条件，可洽HIWIN业务。
◎ 预期寿命约为5,000 Km。
◎ 加速度为0.3G(导程1mm为0.2G)。
◎ 有效行程为100mm。

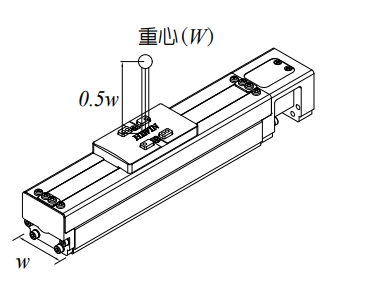

◎ 重心位置位于平台法线方向的0.5x底座宽度(w)处。
负载规格
71
速度-负载关係图是依下述假设所建立的实施例，若有不同的使用条件，可洽HIWIN业务。
◎ 预期寿命约为5,000 Km。
◎ 加速度为0.3G(导程1mm为0.2G)。
◎ 有效行程为100mm。
◎ 重心位置位于平台法线方向的0.5x底座宽度(w)处。
◎滑台往返位置的重现性精度
C：标准级=±0.02mm，
P：精密级=±0.01mm
* 注意：KC单轴机器人并未标示绝对定位精度。
◎自动化送料机构
◎自动化检验设备
◎自动化组装设备

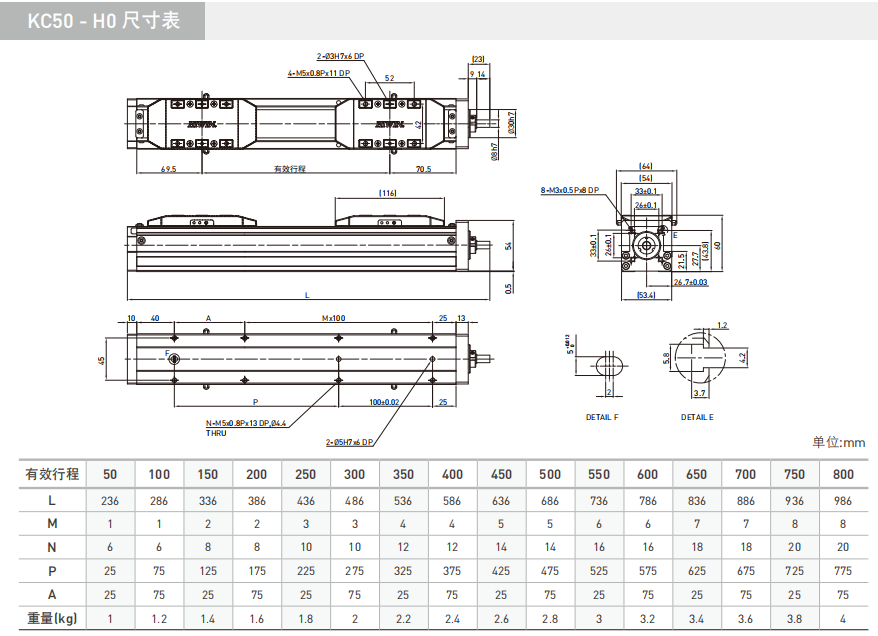

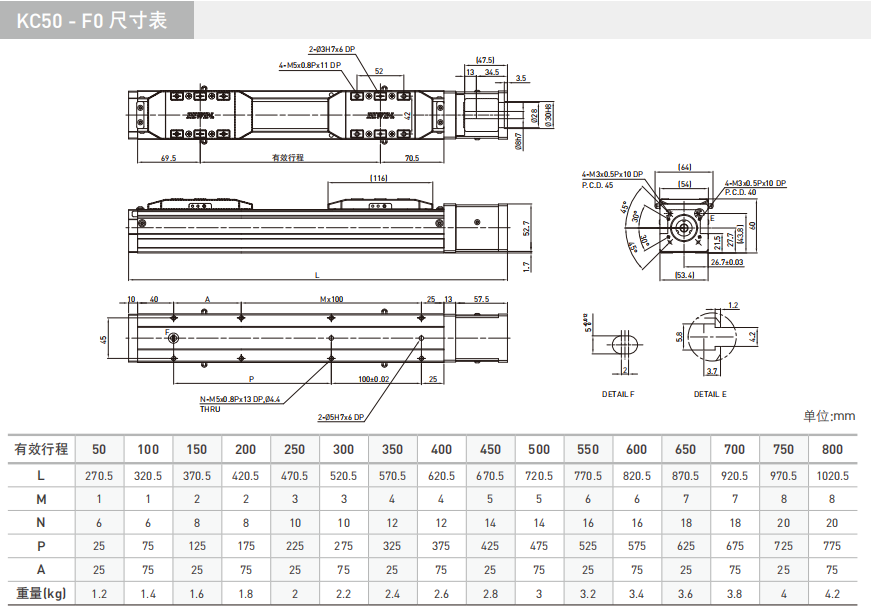

KC50系列

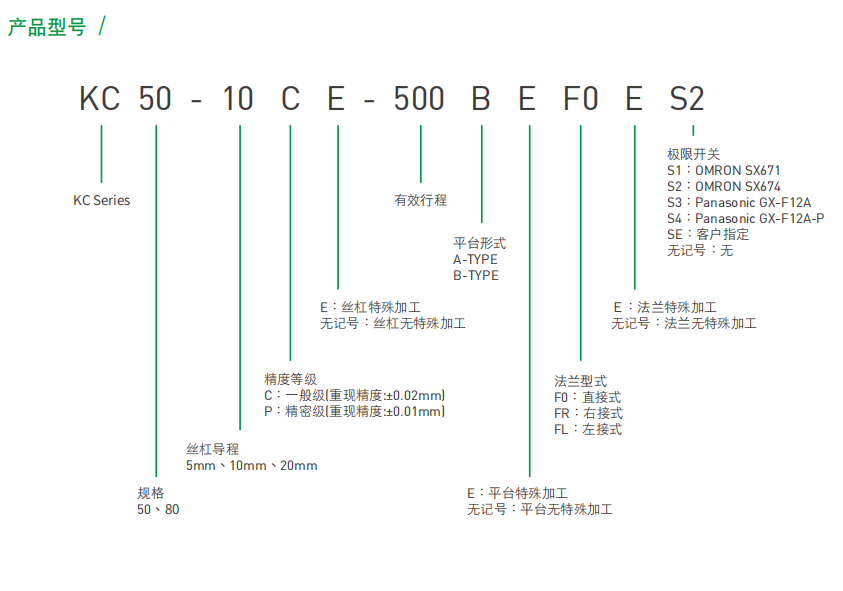

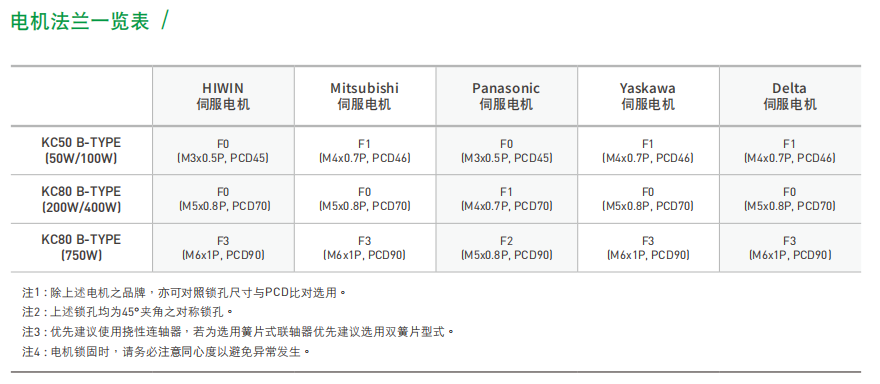

电机马达连接方式：F0(直接式) FL（左接式） FR(右接式)
C级是±0.01mm P级是±0.005mm
05导程
F0(直接式) C级 F0(直接式) P级
KC50-05C-50A-F0 KC50-05P-50A-F0
KC50-05C-100A-F0 KC50-05P-100A-F0
KC50-05C-150A-F0 KC50-05P-150A-F0
KC50-05C-200A-F0 KC50-05P-200A-F0
KC50-05C-250A-F0 KC50-05P-250A-F0
KC50-05C-300A-F0 KC50-05P-300A-F0
KC50-05C-350A-F0 KC50-05P-350A-F0
KC50-05C-400A-F0 KC50-05P-400A-F0
KC50-05C-450A-F0 KC50-05P-450A-F0
KC50-05C-500A-F0 KC50-05P-500A-F0
KC50-05C-550A-F0 KC50-05P-550A-F0
KC50-05C-600A-F0 KC50-05P-600A-F0
KC50-05C-650A-F0 KC50-05P-650A-F0
KC50-05C-700A-F0 KC50-05P-700A-F0
KC50-05C-750A-F0 KC50-05P-750A-F0
KC50-05C-800A-F0 KC50-05P-800A-F0
10导程
F0(直接式) C级 F0(直接式) P级
KC50-10C-50A-F0 KC50-10P-50A-F0
KC50-10C-100A-F0 KC50-10P-100A-F0
KC50-10C-150A-F0 KC50-10P-150A-F0
KC50-10C-200A-F0 KC50-10P-200A-F0
KC50-10C-250A-F0 KC50-10P-250A-F0
KC50-10C-300A-F0 KC50-10P-300A-F0
KC50-10C-350A-F0 KC50-10P-350A-F0
KC50-10C-400A-F0 KC50-10P-400A-F0
KC50-10C-450A-F0 KC50-10P-450A-F0
KC50-10C-500A-F0 KC50-10P-500A-F0
KC50-10C-550A-F0 KC50-10P-550A-F0
KC50-10C-600A-F0 KC50-10P-600A-F0
KC50-10C-650A-F0 KC50-10P-650A-F0
KC50-10C-700A-F0 KC50-10P-700A-F0
KC50-10C-750A-F0 KC50-10P-750A-F0
KC50-10C-800A-F0 KC50-10P-800A-F0
20导程
F0(直接式) C级 F0(直接式) P级
KC50-20C-50A-F0 KC50-20P-50A-F0
KC50-20C-100A-F0 KC50-20P-100A-F0
KC50-20C-150A-F0 KC50-20P-150A-F0
KC50-20C-200A-F0 KC50-20P-200A-F0
KC50-20C-250A-F0 KC50-20P-250A-F0
KC50-20C-300A-F0 KC50-20P-300A-F0
KC50-20C-350A-F0 KC50-20P-350A-F0
KC50-20C-400A-F0 KC50-20P-400A-F0
KC50-20C-450A-F0 KC50-20P-450A-F0
KC50-20C-500A-F0 KC50-20P-500A-F0
KC50-20C-550A-F0 KC50-20P-550A-F0
KC50-20C-600A-F0 KC50-20P-600A-F0
KC50-20C-650A-F0 KC50-20P-650A-F0
KC50-20C-700A-F0 KC50-20P-700A-F0
KC50-20C-750A-F0 KC50-20P-750A-F0
KC50-20C-800A-F0 KC50-20P-800A-F0

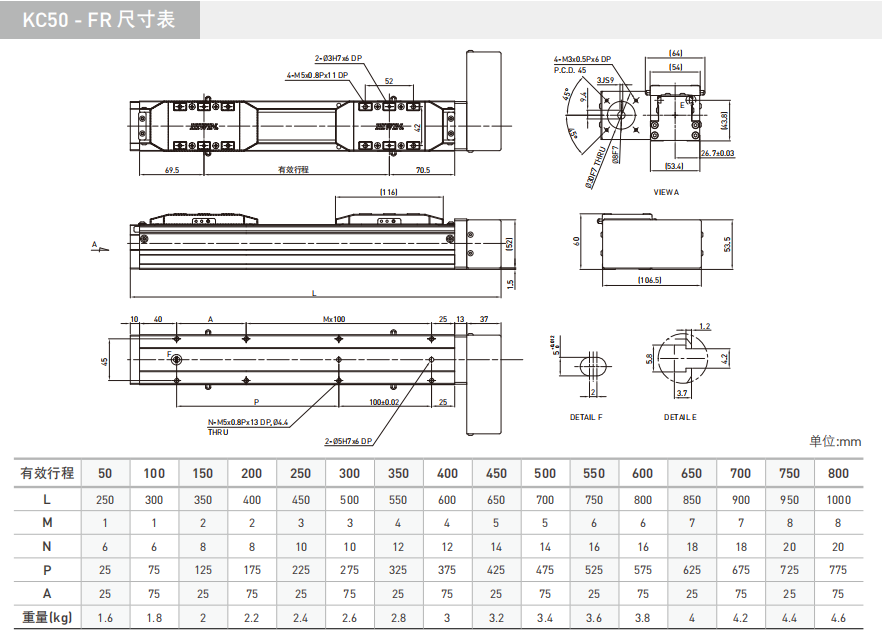

05导程
FR(右接式) C级 F0(直接式) P级
KC50-05C-50A-FR KC50-05P-50A-FR
KC50-05C-100A-FR KC50-05P-100A-FR
KC50-05C-150A-FR KC50-05P-150A-FR
KC50-05C-200A-FR KC50-05P-200A-FR
KC50-05C-250A-FR KC50-05P-250A-FR
KC50-05C-300A-FR KC50-05P-300A-FR
KC50-05C-350A-FR KC50-05P-350A-FR
KC50-05C-400A-FR KC50-05P-400A-FR
KC50-05C-450A-FR KC50-05P-450A-FR
KC50-05C-500A-FR KC50-05P-500A-FR
KC50-05C-550A-FR KC50-05P-550A-FR
KC50-05C-600A-FR KC50-05P-600A-FR
KC50-05C-650A-FR KC50-05P-650A-FR
KC50-05C-700A-FR KC50-05P-700A-FR
KC50-05C-750A-FR KC50-05P-750A-FR
KC50-05C-800A-FR KC50-05P-800A-FR
10导程
FR(右接式) C级 F0(直接式) P级
KC50-10C-50A-FR KC50-10P-50A-FR
KC50-10C-100A-FR KC50-10P-100A-FR
KC50-10C-150A-FR KC50-10P-150A-FR
KC50-10C-200A-FR KC50-10P-200A-FR
KC50-10C-250A-FR KC50-10P-250A-FR
KC50-10C-300A-FR KC50-10P-300A-FR
KC50-10C-350A-FR KC50-10P-350A-FR
KC50-10C-400A-FR KC50-10P-400A-FR
KC50-10C-450A-FR KC50-10P-450A-FR
KC50-10C-500A-FR KC50-10P-500A-FR
KC50-10C-550A-FR KC50-10P-550A-FR
KC50-10C-600A-FR KC50-10P-600A-FR
KC50-10C-650A-FR KC50-10P-650A-FR
KC50-10C-700A-FR KC50-10P-700A-FR
KC50-10C-750A-FR KC50-10P-750A-FR
KC50-10C-800A-FR KC50-10P-800A-FR
20导程
FR(右接式) C级 F0(直接式) P级
KC50-20C-50A-FR KC50-20P-50A-FR
KC50-20C-100A-FR KC50-20P-100A-FR
KC50-20C-150A-FR KC50-20P-150A-FR
KC50-20C-200A-FR KC50-20P-200A-FR
KC50-20C-250A-FR KC50-20P-250A-FR
KC50-20C-300A-FR KC50-20P-300A-FR
KC50-20C-350A-FR KC50-20P-350A-FR
KC50-20C-400A-FR KC50-20P-400A-FR
KC50-20C-450A-FR KC50-20P-450A-FR
KC50-20C-500A-FR KC50-20P-500A-FR
KC50-20C-550A-FR KC50-20P-550A-FR
KC50-20C-600A-FR KC50-20P-600A-FR
KC50-20C-650A-FR KC50-20P-650A-FR
KC50-20C-700A-FR KC50-20P-700A-FR
KC50-20C-750A-FR KC50-20P-750A-FR
KC50-20C-800A-FR KC50-20P-800A-FR

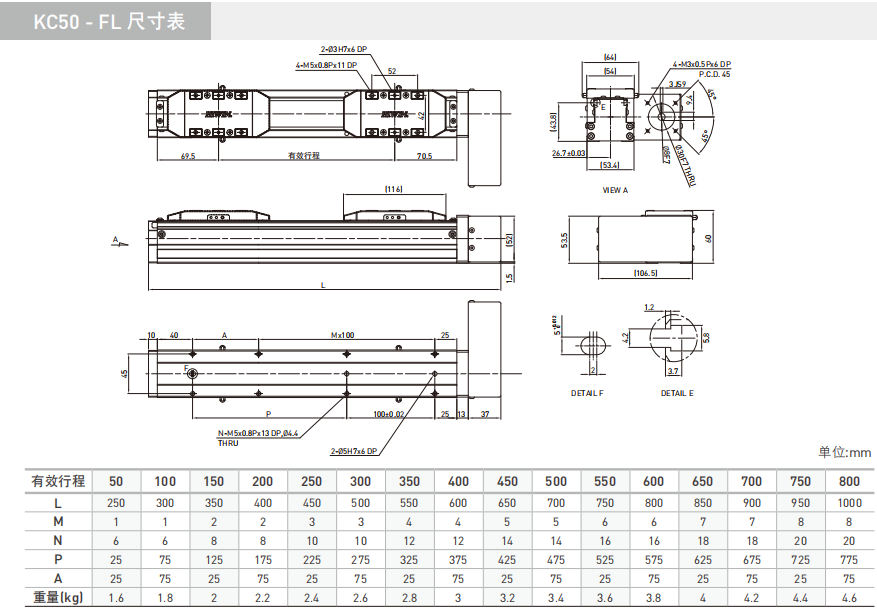

05导程
FL(左接式) C级 F0(直接式) P级
KC50-05C-50A-FL KC50-05P-50A-FL
KC50-05C-100A-FL KC50-05P-100A-FL
KC50-05C-150A-FL KC50-05P-150A-FL
KC50-05C-200A-FL KC50-05P-200A-FL
KC50-05C-250A-FL KC50-05P-250A-FL
KC50-05C-300A-FL KC50-05P-300A-FL
KC50-05C-350A-FL KC50-05P-350A-FL
KC50-05C-400A-FL KC50-05P-400A-FL
KC50-05C-450A-FL KC50-05P-450A-FL
KC50-05C-500A-FL KC50-05P-500A-FL
KC50-05C-550A-FL KC50-05P-550A-FL
KC50-05C-600A-FL KC50-05P-600A-FL
KC50-05C-650A-FL KC50-05P-650A-FL
KC50-05C-700A-FL KC50-05P-700A-FL
KC50-05C-750A-FL KC50-05P-750A-FL
KC50-05C-800A-FL KC50-05P-800A-FL
10导程
FL(左接式) C级 F0(直接式) P级
KC50-10C-50A-FL KC50-10P-50A-FL
KC50-10C-100A-FL KC50-10P-100A-FL
KC50-10C-150A-FL KC50-10P-150A-FL
KC50-10C-200A-FL KC50-10P-200A-FL
KC50-10C-250A-FL KC50-10P-250A-FL
KC50-10C-300A-FL KC50-10P-300A-FL
KC50-10C-350A-FL KC50-10P-350A-FL
KC50-10C-400A-FL KC50-10P-400A-FL
KC50-10C-450A-FL KC50-10P-450A-FL
KC50-10C-500A-FL KC50-10P-500A-FL
KC50-10C-550A-FL KC50-10P-550A-FL
KC50-10C-600A-FL KC50-10P-600A-FL
KC50-10C-650A-FL KC50-10P-650A-FL
KC50-10C-700A-FL KC50-10P-700A-FL
KC50-10C-750A-FL KC50-10P-750A-FL
KC50-10C-800A-FL KC50-10P-800A-FL
20导程
FL(左接式) C级 F0(直接式) P级
KC50-20C-50A-FL KC50-20P-50A-FL
KC50-20C-100A-FL KC50-20P-100A-FL
KC50-20C-150A-FL KC50-20P-150A-FL
KC50-20C-200A-FL KC50-20P-200A-FL
KC50-20C-250A-FL KC50-20P-250A-FL
KC50-20C-300A-FL KC50-20P-300A-FL
KC50-20C-350A-FL KC50-20P-350A-FL
KC50-20C-400A-FL KC50-20P-400A-FL
KC50-20C-450A-FL KC50-20P-450A-FL
KC50-20C-500A-FL KC50-20P-500A-FL
KC50-20C-550A-FL KC50-20P-550A-FL
KC50-20C-600A-FL KC50-20P-600A-FL
KC50-20C-650A-FL KC50-20P-650A-FL
KC50-20C-700A-FL KC50-20P-700A-FL
KC50-20C-750A-FL KC50-20P-750A-FL
KC50-20C-800A-FL KC50-20P-800A-FL

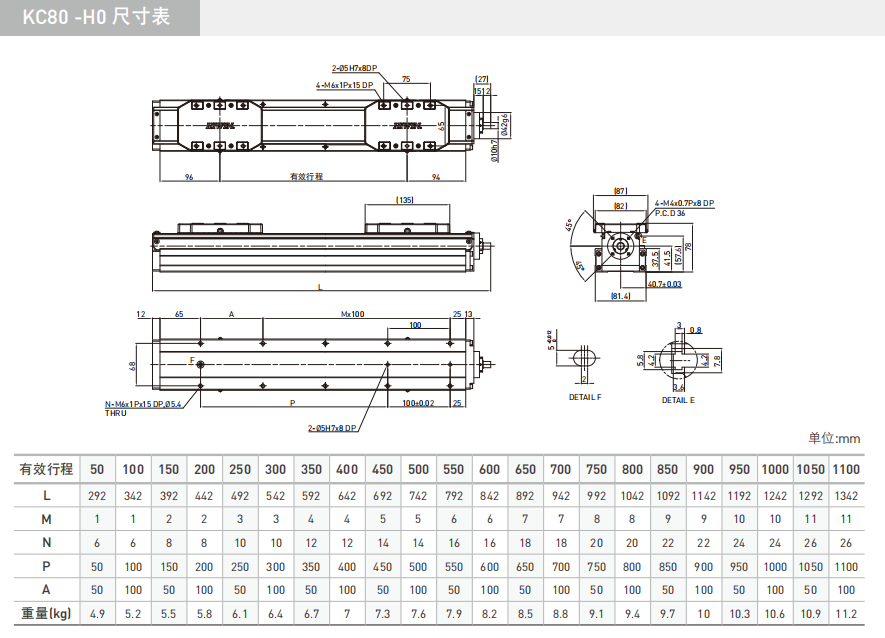

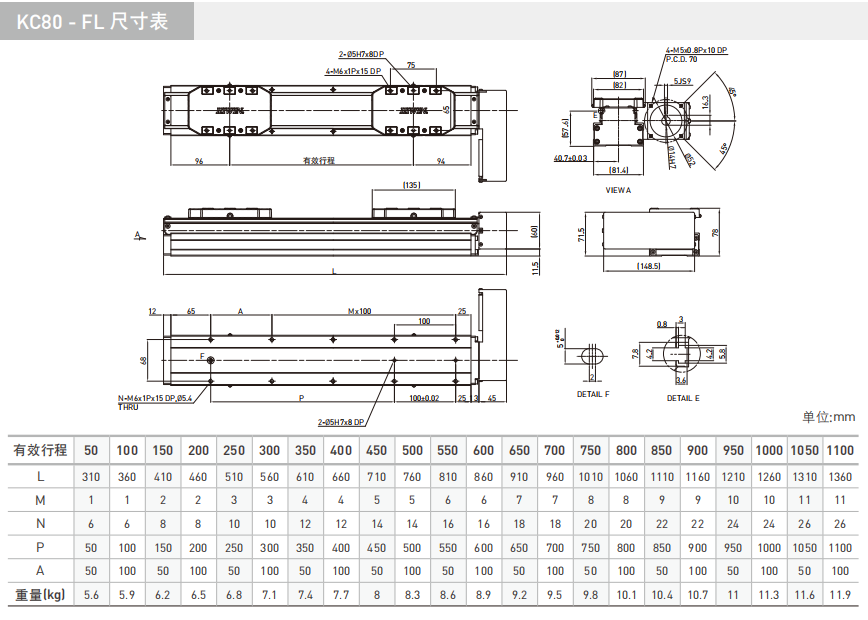

KC80系列
电机马达连接方式：F0(直接式) FL（左接式） FR(右接式)
C级是±0.01mm P级是±0.005mm
05导程
F0(直接式) C级 F0(直接式) P级
KC80-05C-50A-F0 KC80-05P-50A-F0
KC80-05C-100A-F0 KC80-05P-100A-F0
KC80-05C-150A-F0 KC80-05P-150A-F0
KC80-05C-200A-F0 KC80-05P-200A-F0
KC80-05C-250A-F0 KC80-05P-250A-F0
KC80-05C-300A-F0 KC80-05P-300A-F0
KC80-05C-350A-F0 KC80-05P-350A-F0
KC80-05C-400A-F0 KC80-05P-400A-F0
KC80-05C-450A-F0 KC80-05P-450A-F0
KC80-05C-500A-F0 KC80-05P-500A-F0
KC80-05C-550A-F0 KC80-05P-550A-F0
KC80-05C-600A-F0 KC80-05P-600A-F0
KC80-05C-650A-F0 KC80-05P-650A-F0
KC80-05C-700A-F0 KC80-05P-700A-F0
KC80-05C-750A-F0 KC80-05P-750A-F0
KC80-05C-800A-F0 KC80-05P-800A-F0
KC80-05C-850A-F0 KC80-05P-850A-F0
KC80-05C-900A-F0 KC80-05P-900A-F0
KC80-05C-950A-F0 KC80-05P-950A-F0
KC80-05C-1000A-F0 KC80-05P-1000A-F0
KC80-05C-1050A-F0 KC80-05P-1050A-F0
KC80-05C-1100A-F0 KC80-05P-1100A-F0
10导程
F0(直接式) C级 F0(直接式) P级
KC80-10C-50A-F0 KC80-10P-50A-F0
KC80-10C-100A-F0 KC80-10P-100A-F0
KC80-10C-150A-F0 KC80-10P-150A-F0
KC80-10C-200A-F0 KC80-10P-200A-F0
KC80-10C-250A-F0 KC80-10P-250A-F0
KC80-10C-300A-F0 KC80-10P-300A-F0
KC80-10C-350A-F0 KC80-10P-350A-F0
KC80-10C-400A-F0 KC80-10P-400A-F0
KC80-10C-450A-F0 KC80-10P-450A-F0
KC80-10C-500A-F0 KC80-10P-500A-F0
KC80-10C-550A-F0 KC80-10P-550A-F0
KC80-10C-600A-F0 KC80-10P-600A-F0
KC80-10C-650A-F0 KC80-10P-650A-F0
KC80-10C-700A-F0 KC80-10P-700A-F0
KC80-10C-750A-F0 KC80-10P-750A-F0
KC80-10C-800A-F0 KC80-10P-800A-F0
KC80-10C-850A-F0 KC80-10P-850A-F0
KC80-10C-900A-F0 KC80-10P-900A-F0
KC80-10C-950A-F0 KC80-10P-950A-F0
KC80-10C-1000A-F0 KC80-10P-1000A-F0
KC80-10C-1050A-F0 KC80-10P-1050A-F0
KC80-10C-1100A-F0 KC80-10P-1100A-F0
20导程
F0(直接式) C级 F0(直接式) P级
KC80-20C-50A-F0 KC80-20P-50A-F0
KC80-20C-100A-F0 KC80-20P-100A-F0
KC80-20C-150A-F0 KC80-20P-150A-F0
KC80-20C-200A-F0 KC80-20P-200A-F0
KC80-20C-250A-F0 KC80-20P-250A-F0
KC80-20C-300A-F0 KC80-20P-300A-F0
KC80-20C-350A-F0 KC80-20P-350A-F0
KC80-20C-400A-F0 KC80-20P-400A-F0
KC80-20C-450A-F0 KC80-20P-450A-F0
KC80-20C-500A-F0 KC80-20P-500A-F0
KC80-20C-550A-F0 KC80-20P-550A-F0
KC80-20C-600A-F0 KC80-20P-600A-F0
KC80-20C-650A-F0 KC80-20P-650A-F0
KC80-20C-700A-F0 KC80-20P-700A-F0
KC80-20C-750A-F0 KC80-20P-750A-F0
KC80-20C-800A-F0 KC80-20P-800A-F0
KC80-20C-850A-F0 KC80-20P-850A-F0
KC80-20C-900A-F0 KC80-20P-900A-F0
KC80-20C-950A-F0 KC80-20P-950A-F0
KC80-20C-1000A-F0 KC80-20P-1000A-F0
KC80-20C-1050A-F0 KC80-20P-1050A-F0
KC80-20C-1100A-F0 KC80-20P-1100A-F0

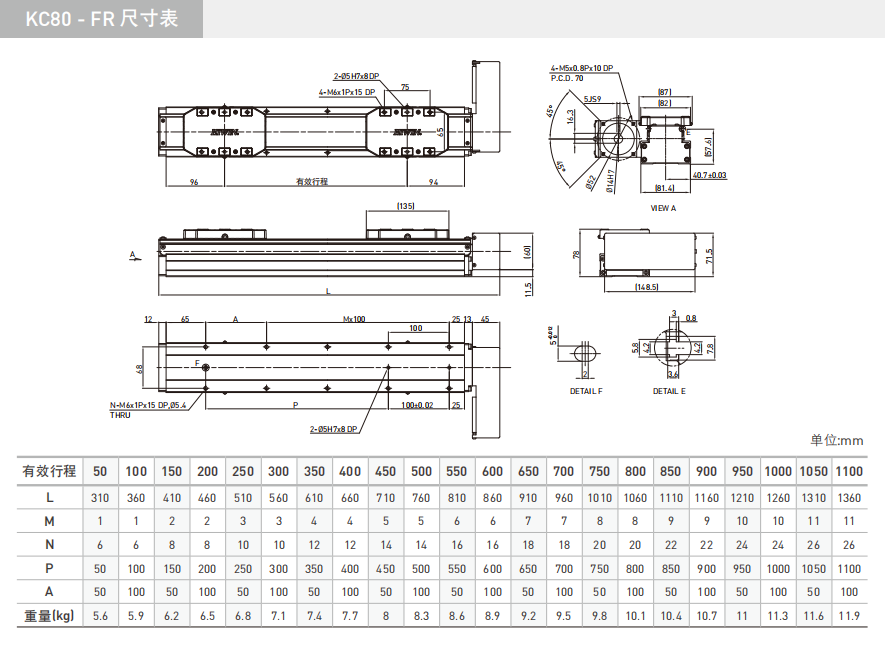

05导程
FR(右接式) C级 FR(右接式) P级
KC80-05C-50A-FR KC80-05P-50A-FR
KC80-05C-100A-FR KC80-05P-100A-FR
KC80-05C-150A-FR KC80-05P-150A-FR
KC80-05C-200A-FR KC80-05P-200A-FR
KC80-05C-250A-FR KC80-05P-250A-FR
KC80-05C-300A-FR KC80-05P-300A-FR
KC80-05C-350A-FR KC80-05P-350A-FR
KC80-05C-400A-FR KC80-05P-400A-FR
KC80-05C-450A-FR KC80-05P-450A-FR
KC80-05C-500A-FR KC80-05P-500A-FR
KC80-05C-550A-FR KC80-05P-550A-FR
KC80-05C-600A-FR KC80-05P-600A-FR
KC80-05C-650A-FR KC80-05P-650A-FR
KC80-05C-700A-FR KC80-05P-700A-FR
KC80-05C-750A-FR KC80-05P-750A-FR
KC80-05C-800A-FR KC80-05P-800A-FR
KC80-05C-850A-FR KC80-05P-850A-FR
KC80-05C-900A-FR KC80-05P-900A-FR
KC80-05C-950A-FR KC80-05P-950A-FR
KC80-05C-1000A-FR KC80-05P-1000A-FR
KC80-05C-1050A-FR KC80-05P-1050A-FR
KC80-05C-1100A-FR KC80-05P-1100A-FR
10导程
FR(右接式) C级 FR(右接式) P级
KC80-10C-50A-FR KC80-10P-50A-FR
KC80-10C-100A-FR KC80-10P-100A-FR
KC80-10C-150A-FR KC80-10P-150A-FR
KC80-10C-200A-FR KC80-10P-200A-FR
KC80-10C-250A-FR KC80-10P-250A-FR
KC80-10C-300A-FR KC80-10P-300A-FR
KC80-10C-350A-FR KC80-10P-350A-FR
KC80-10C-400A-FR KC80-10P-400A-FR
KC80-10C-450A-FR KC80-10P-450A-FR
KC80-10C-500A-FR KC80-10P-500A-FR
KC80-10C-550A-FR KC80-10P-550A-FR
KC80-10C-600A-FR KC80-10P-600A-FR
KC80-10C-650A-FR KC80-10P-650A-FR
KC80-10C-700A-FR KC80-10P-700A-FR
KC80-10C-750A-FR KC80-10P-750A-FR
KC80-10C-800A-FR KC80-10P-800A-FR
KC80-10C-850A-FR KC80-10P-850A-FR
KC80-10C-900A-FR KC80-10P-900A-FR
KC80-10C-950A-FR KC80-10P-950A-FR
KC80-10C-1000A-FR KC80-10P-1000A-FR
KC80-10C-1050A-FR KC80-10P-1050A-FR
KC80-10C-1100A-FR KC80-10P-1100A-FR
20导程
FR(右接式) C级 F0(直接式) P级
KC80-20C-50A-FR KC80-20P-50A-FR
KC80-20C-100A-FR KC80-20P-100A-FR
KC80-20C-150A-FR KC80-20P-150A-FR
KC80-20C-200A-FR KC80-20P-200A-FR
KC80-20C-250A-FR KC80-20P-250A-FR
KC80-20C-300A-FR KC80-20P-300A-FR
KC80-20C-350A-FR KC80-20P-350A-FR
KC80-20C-400A-FR KC80-20P-400A-FR
KC80-20C-450A-FR KC80-20P-450A-FR
KC80-20C-500A-FR KC80-20P-500A-FR
KC80-20C-550A-FR KC80-20P-550A-FR
KC80-20C-600A-FR KC80-20P-600A-FR
KC80-20C-650A-FR KC80-20P-650A-FR
KC80-20C-700A-FR KC80-20P-700A-FR
KC80-20C-750A-FR KC80-20P-750A-FR
KC80-20C-800A-FR KC80-20P-800A-FR
KC80-20C-850A-FR KC80-20P-850A-FR
KC80-20C-900A-FR KC80-20P-900A-FR
KC80-20C-950A-FR KC80-20P-950A-FR
KC80-20C-1000A-FR KC80-20P-1000A-FR
KC80-20C-1050A-FR KC80-20P-1050A-FR
KC80-20C-1100A-FR KC80-20P-1100A-FR
05导程
FL(左接式) C级 FL(左接式) P级
KC80-05C-50A-FL KC80-05P-50A-FL
KC80-05C-100A-FL KC80-05P-100A-FL
KC80-05C-150A-FL KC80-05P-150A-FL
KC80-05C-200A-FL KC80-05P-200A-FL
KC80-05C-250A-FL KC80-05P-250A-FL
KC80-05C-300A-FL KC80-05P-300A-FL
KC80-05C-350A-FL KC80-05P-350A-FL
KC80-05C-400A-FL KC80-05P-400A-FL
KC80-05C-450A-FL KC80-05P-450A-FL
KC80-05C-500A-FL KC80-05P-500A-FL
KC80-05C-550A-FL KC80-05P-550A-FL
KC80-05C-600A-FL KC80-05P-600A-FL
KC80-05C-650A-FL KC80-05P-650A-FL
KC80-05C-700A-FL KC80-05P-700A-FL
KC80-05C-750A-FL KC80-05P-750A-FL
KC80-05C-800A-FL KC80-05P-800A-FL
KC80-05C-850A-FL KC80-05P-850A-FL
KC80-05C-900A-FL KC80-05P-900A-FL
KC80-05C-950A-FL KC80-05P-950A-FL
KC80-05C-1000A-FL KC80-05P-1000A-FL
KC80-05C-1050A-FL KC80-05P-1050A-FL
KC80-05C-1100A-FL KC80-05P-1100A-FL
10导程
FL(左接式) C级 FL(左接式) P级
KC80-10C-50A-FL KC80-10P-50A-FL
KC80-10C-100A-FL KC80-10P-100A-FL
KC80-10C-150A-FL KC80-10P-150A-FL
KC80-10C-200A-FL KC80-10P-200A-FL
KC80-10C-250A-FL KC80-10P-250A-FL
KC80-10C-300A-FL KC80-10P-300A-FL
KC80-10C-350A-FL KC80-10P-350A-FL
KC80-10C-400A-FL KC80-10P-400A-FL
KC80-10C-450A-FL KC80-10P-450A-FL
KC80-10C-500A-FL KC80-10P-500A-FL
KC80-10C-550A-FL KC80-10P-550A-FL
KC80-10C-600A-FL KC80-10P-600A-FL
KC80-10C-650A-FL KC80-10P-650A-FL
KC80-10C-700A-FL KC80-10P-700A-FL
KC80-10C-750A-FL KC80-10P-750A-FL
KC80-10C-800A-FL KC80-10P-800A-FL
KC80-10C-850A-FL KC80-10P-850A-FL
KC80-10C-900A-FL KC80-10P-900A-FL
KC80-10C-950A-FL KC80-10P-950A-FL
KC80-10C-1000A-FL KC80-10P-1000A-FL
KC80-10C-1050A-FL KC80-10P-1050A-FL
KC80-10C-1100A-FL KC80-10P-1100A-FL
20导程
FL(左接式) C级 FL(左接式) P级
KC80-20C-50A-FL KC80-20P-50A-FL
KC80-20C-100A-FL KC80-20P-100A-FL
KC80-20C-150A-FL KC80-20P-150A-FL
KC80-20C-200A-FL KC80-20P-200A-FL
KC80-20C-250A-FL KC80-20P-250A-FL
KC80-20C-300A-FL KC80-20P-300A-FL
KC80-20C-350A-FL KC80-20P-350A-FL
KC80-20C-400A-FL KC80-20P-400A-FL
KC80-20C-450A-FL KC80-20P-450A-FL
KC80-20C-500A-FL KC80-20P-500A-FL
KC80-20C-550A-FL KC80-20P-550A-FL
KC80-20C-600A-FL KC80-20P-600A-FL
KC80-20C-650A-FL KC80-20P-650A-FL
KC80-20C-700A-FL KC80-20P-700A-FL
KC80-20C-750A-FL KC80-20P-750A-FL
KC80-20C-800A-FL KC80-20P-800A-FL
KC80-20C-850A-FL KC80-20P-850A-FL
KC80-20C-900A-FL KC80-20P-900A-FL
KC80-20C-950A-FL KC80-20P-950A-FL
KC80-20C-1000A-FL KC80-20P-1000A-FL
KC80-20C-1050A-FL KC80-20P-1050A-FL
KC80-20C-1100A-FL KC80-20P-1100A-FL
选择HIWIN单轴机器人的6大理由
01:HIWIN滚珠丝杠&线性导轨Inside
全球知名的传动控制与系统科技专业制造者，符合RoHS标准，可靠的质量。
02:模块化的产品设计
节省客户组装时间与安装空间，降低组装失误率，有效提升客户设备质量。
03:轻量化高刚性铝挤型底座
整体银色的金属质感柔和，底座关键部位内空的倒角细节和去毛刺处理具备优质水准。
04:安装与维护容易
结构简单、便于加工、测量、装配和调整。限位开关的安装简单方便。底座已经预设一道背母沟槽，可在任意位置固定。
05:可客制化设计
满足客户定制所需之单轴或组合设计成多轴出货。亦可直接搭配HIWIN完整的AC伺服电机产品线，依照客户需求，提供机电整合的模组化产品。
大幅降低客户在设计及debug所花费的研发资源及人力，而能专注将资源及时间更有效的运用在自身的研发竞争力上。
06:服务客户实力
◆历练累积实力，服务于广泛产业。HIWIN懂客户需求，提供优秀的设计与解决方案。
◆苏州厂在地化实时服务、快速交货、系统整合的全方位能量。
电话: 0512 - 80685599 ext:7511、7460
邮箱: business@hiwin.cn
网址: www. hiwin.cn
电话: 13527953137吴女士
邮箱: wuhaizhen.baijia@qq.com
网址: www. dyhiwin.com
适用领域/
PCB制程设备、半导体设备、物料移载、锡焊设备、多轴搭接.等自动化产业运用。

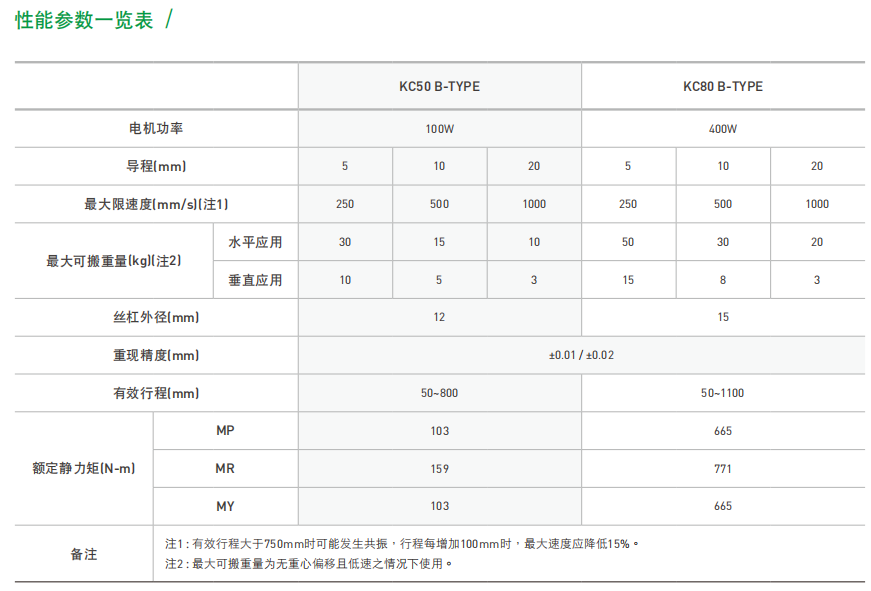

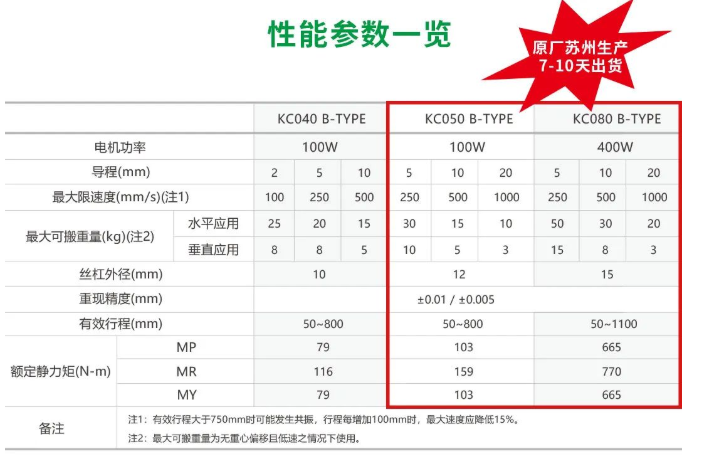

注2 :比较基础为近似规格之KC A-TYPE， 依不同规格、负荷能力B-TYPE提升约10~30%。产品特色/
●便利安装:任何组装方式均无需拆除外盖
●保养便利:单点注油同步润滑轨道、丝杠，无需拆除任何配件(注1]
●更高性能:负荷能力提升10%~30%[注2]
注1 :建议每3个月、每100km进行保养、注油，若使用频率较高或极限荷重请务必缩短保养周期。
注2 :比较基础为近似规格之KC A-TYPE， 依不同规格、负荷能力B-TYPE提升约10~30%。
吴女士 13527953137
上一篇：没有了
下一篇：没有了
